ISL73128RH, ISL73127RH - Radiation Hardened Ultra High Frequency NPN/PNP Transistor Arrays

Intersil Corporation

The ISL73128RH by Intersil Corporation is a Radiation Hardened Ultra High Frequency NPN/PNP Transistor Arrays. Below is the official datasheet preview.

📥 Download Datasheet

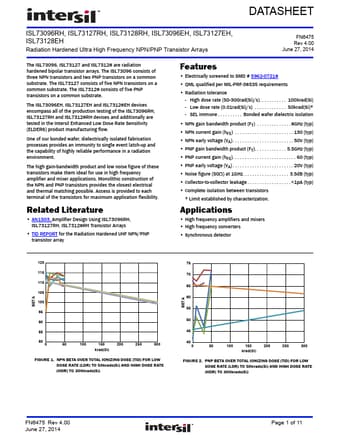

ISL73128RH Radiation Hardened Ultra High Frequency NPN/PNP Transistor Arrays by Intersil Corporation - Datasheet Preview — Official preview page of the **ISL73128RH** Radiation Hardened Ultra High Frequency NPN/PNP Transistor Arrays datasheet (Intersil Corporation).

Datasheet Details

Part number	ISL73128RH, ISL73127RH
Manufacturer	Intersil Corporation
File Size	414.90 KB
Description	Radiation Hardened Ultra High Frequency NPN/PNP Transistor Arrays
Datasheet	ISL73127RH_IntersilCorporation.pdf
Note	This datasheet PDF includes multiple part numbers: ISL73128RH, ISL73127RH. Please refer to the document for exact specifications by model.
Additional preview pages of the ISL73128RH datasheet.

ISL73128RH Product details

Description

PIN # 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 PIN NAME/DESCRIPTION ISL73096RH, ISL73096EH Q1 BASE Q1 EMITTER Q1 COLLECTOR Q2 EMITTER Q2 BASE Q2 COLLECTOR Q3 EMITTER Q3 BASE Q3 COLLECTOR Q4 EMITTER Q4 BASE Q4 COLLECTOR Q5 EMITTER Q5 BASE Q5 COLLECTOR NC (No internal Connection) PIN NAME/DESCRIPTION ISL73127RH/ISL73128RH ISL73127EH/ISL73128EH Q1 COLLECTOR Q2 COLLECTOR Q2 EMITTER Q2 BASE NC (No internal Connection) Q3 COLLECTOR Q3 EMITTER Q3 BASE Q4 BASE Q4 EMITTER Q4 COLLECTOR Q5 COLLECTOR Q5 E

Features

Electrically screened to SMD # 5962-07218.
QML qualified per MIL-PRF-38535 requirements.
Radiation tolerance - High dose rate (50-300rad(Si)/s).
. 100krad(Si) - Low dose rate (0.01rad(Si)/s).
. . . 50krad(Si).
- SEL immune.
Bonded wafer dielectric isolation.
NPN gain bandwidth product (FT).
. . . . 8GHz (typ).
NPN current gain (hFE).
. . . . 130.
