| Part number | ISL73244SEH, ISL70244SEH |
|---|---|
| Manufacturer | Intersil |
| File Size | 1.74 MB |
| Description | Low-Power Operational Amplifier |
| Datasheet |
 ISL70244SEH-Intersil.pdf
|
| Note |
This datasheet PDF includes multiple part numbers: ISL73244SEH, ISL70244SEH. Please refer to the document for exact specifications by model. |

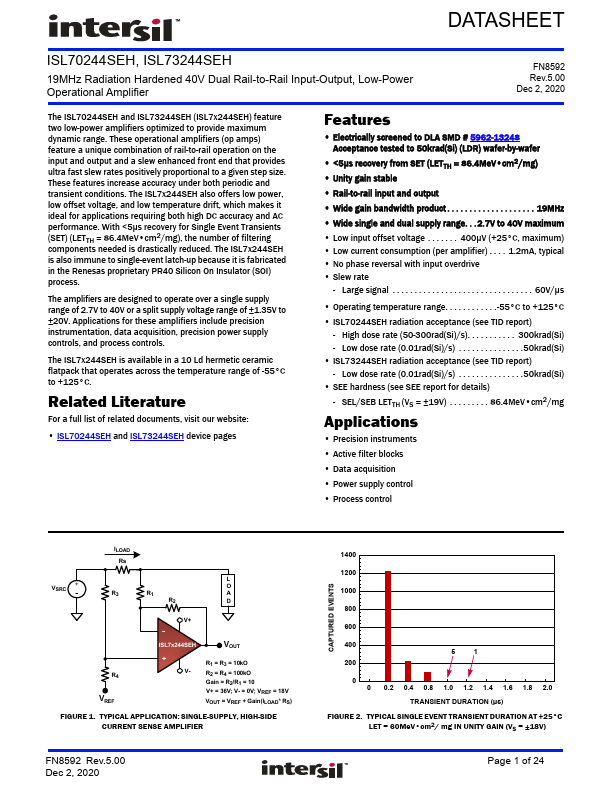

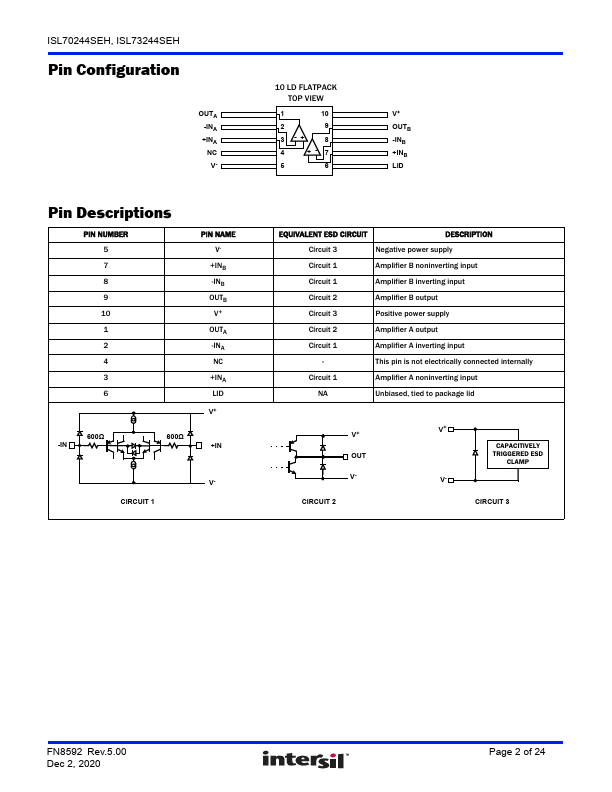

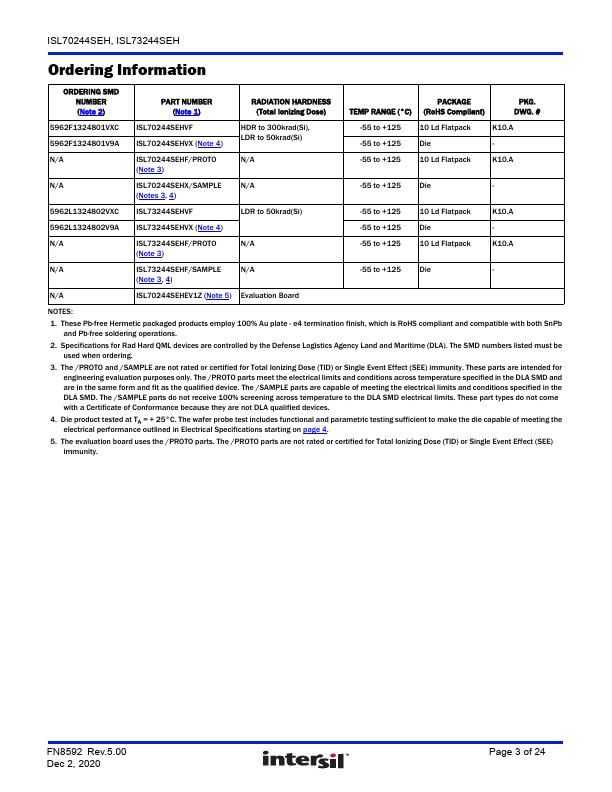

PIN NUMBER 5 7 8 9 10 1 2 4 3 6 PIN NAME V- +INB -INB OUTB V+ OUTA -INA NC +INA LID V+ 600Ω -IN 600Ω +IN VCIRCUIT 1 EQUIVALENT ESD CIRCUIT DESCRIPTION Circuit 3 Negative power supply Circuit 1 Amplifier B noninverting input Circuit 1 Amplifier B inverting input Circuit 2 Amplifier B output Circuit 3 Positive power supply Circuit 2 Amplifier A output Circuit 1 Amplifier A inverting input - This pin is not electrically connected internally Circuit 1 Amplifier A noninvertin
