ISL70244SEH - Low-Power Operational Amplifier

Intersil

📥 Download Datasheet

ISL70244SEH Datasheet Preview — Preview of ISL70244SEH PDF

Datasheet Details

Part number	ISL70244SEH
Manufacturer	Intersil
File Size	1.74 MB
Description	Low-Power Operational Amplifier
Datasheet	ISL70244SEH-Intersil.pdf

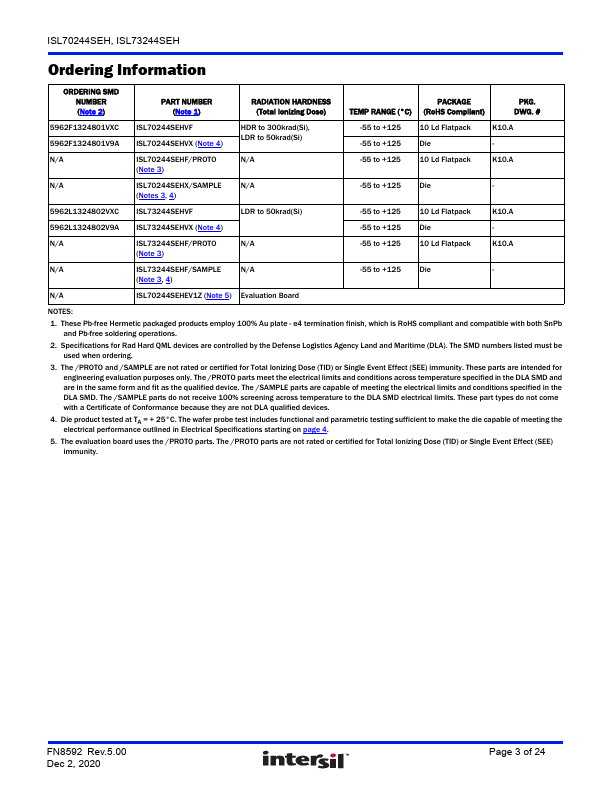

ISL70244SEH Product details

Description

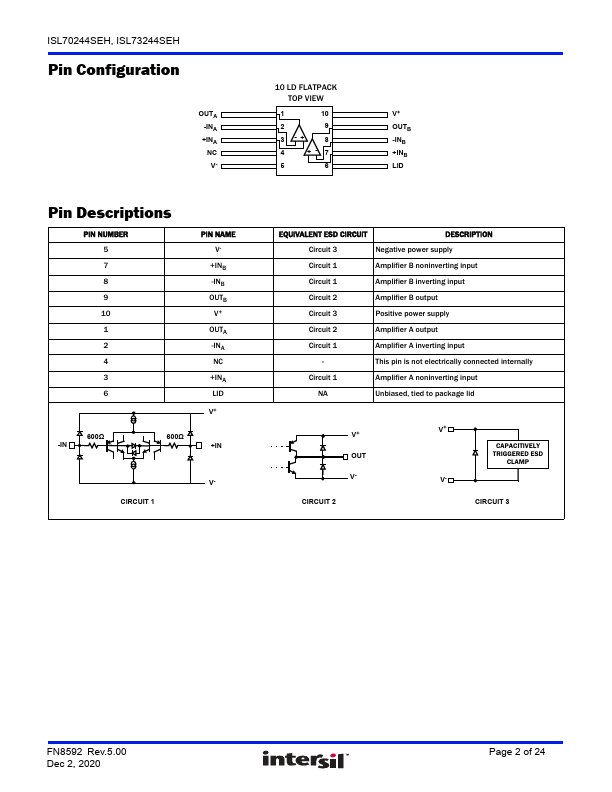

PIN NUMBER 5 7 8 9 10 1 2 4 3 6 PIN NAME V- +INB -INB OUTB V+ OUTA -INA NC +INA LID V+ 600Ω -IN 600Ω +IN VCIRCUIT 1 EQUIVALENT ESD CIRCUIT DESCRIPTION Circuit 3 Negative power supply Circuit 1 Amplifier B noninverting input Circuit 1 Amplifier B inverting input Circuit 2 Amplifier B output Circuit 3 Positive power supply Circuit 2 Amplifier A output Circuit 1 Amplifier A inverting input - This pin is not electrically connected internally Circuit 1 Amplifier A noninvertin

Features

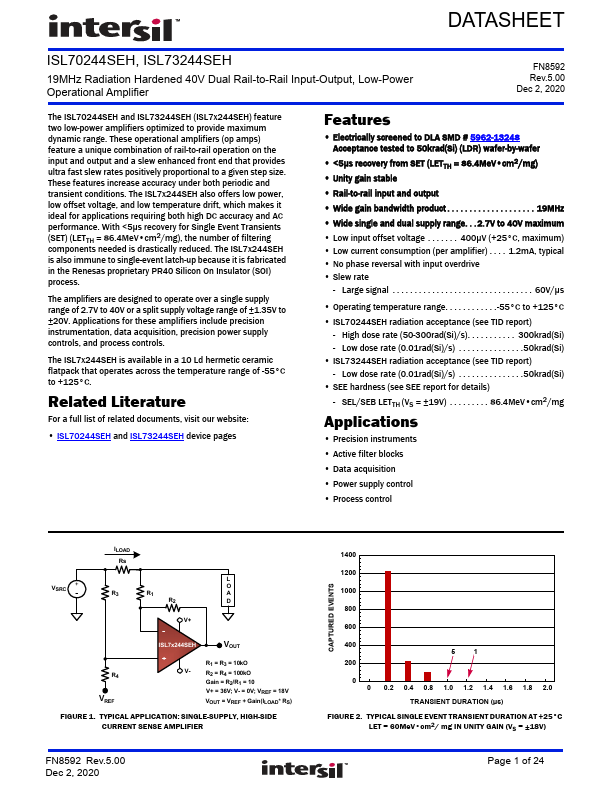

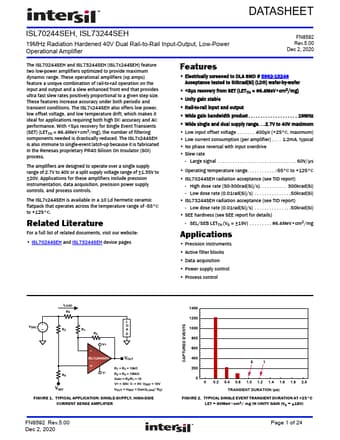

increase accuracy under both periodic and transient conditions. The ISL7x244SEH also offers low power, low offset voltage, and low temperature drift, which makes it ideal for.
