ISL70219ASEH - Precision Low-Power Operational Amplifier

Intersil

📥 Download Datasheet

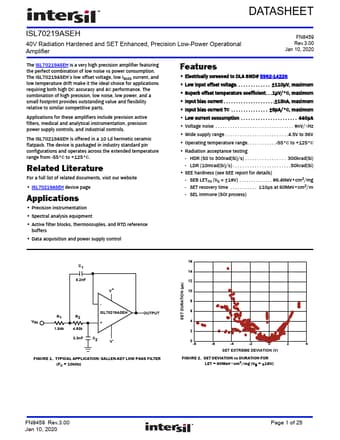

ISL70219ASEH Datasheet Preview — Preview of ISL70219ASEH PDF

Datasheet Details

Part number	ISL70219ASEH
Manufacturer	Intersil
File Size	7.05 MB
Description	Precision Low-Power Operational Amplifier
Datasheet	ISL70219ASEH-Intersil.pdf

ISL70219ASEH Product details

Description

PIN NUMBER 1 2 3 10 7 8 9 5 4 6 500Ω IN- PIN NAME OUTA -INA +INA V+ +INB -INB OUTB V- NC LID 500Ω V+ IN+ V- CIRCUIT 1 EQUIVALENT ESD CIRCUIT DESCRIPTION Circuit 2 Amplifier A output Circuit 1 Amplifier A inverting input Circuit 1 Amplifier A noninverting input Circuit 3 Positive power supply Circuit 1 Amplifier B noninverting input Circuit 1 Amplifier B inverting input Circuit 2 Amplifier B output Circuit 3 Negative power supply - No connect NA Unbiased, tied to p

Features

Electrically screened to DLA SMD# 5962-14226.
Low input offset voltage.
. . . . ±110µV, maximum.
Superb offset temperature coefficient. . .1µV/°C, maximum.
Input bias current.
. ±15nA, maximum.
Input bias current TC.
±5pA/°C, maximum.
Low current consumption.
. . . 440µA.
Voltage noise.
