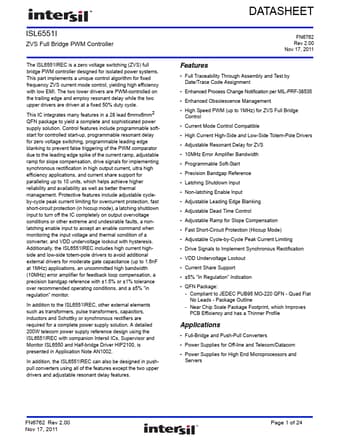

ISL6551I - ZVS Full Bridge PWM Controller

Intersil

Datasheet Details

Part number	ISL6551I
Manufacturer	Intersil
File Size	1.16 MB
Description	ZVS Full Bridge PWM Controller
Datasheet	ISL6551I-Intersil.pdf

in a 28 lead 6mmx6mm2 QFN package to yield a complete and sophisticated power supply solution. Control features include programmable softstart for controlled start-up, programmable resonant delay for zero voltage switching, programmable leading edge blanking to prevent false triggering of the PWM comparator due to the leading edge spike of the current ramp, adjustable ramp for slope compensation, drive signals for implementing synchronous rectification in high output current, ultra high efficien.
