IS-1009EH, IS-1009RH - Radiation Hardened 2.5V Reference

IS-1009EH Description

IS-1009RH, IS-1009EH Radiation Hardened 2.5V Reference The Radiation Hardened IS-1009RH, IS-1009EH are a 2.5V shunt regulator diode is designed to pro.
PKG.

IS-1009EH Features

* Electrically screened to SMD #5962-00523
* QML qualified per MIL-PRF-38535 requirements
* EH version acceptance tested to 50krad(Si) (LDR)
* Radiation environment - IS-1009EH - High dose rate (50-300rad(Si)/s)
* . 300 krad(Si) - Low dose rate (0.01rad

IS-1009EH Applications

* Power supply monitoring
* Reference for 5V systems
* A/D and D/A reference Pin Configurations IS2-1009RH, IS2-1009EH (TO-206AB CAN) BOTTOM VIEW V+ 2 ADJ 1 3 V- FN4780 Rev 8.0 May 18, 2021 ISYE-1009RH, ISYE-1009EH (SMD.5) BOTTOM VIEW V- 3 2 ADJ 1 V+ Page 1 of 4

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IS-1009EH, IS-1009RH. Please refer to the document for exact specifications by model.

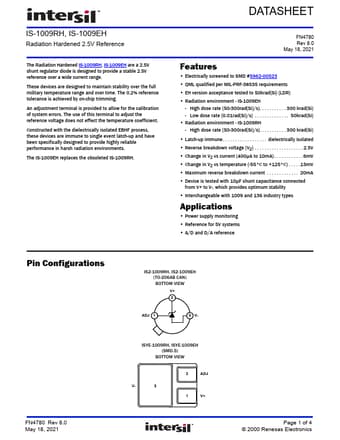

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IS-1009EH, IS-1009RH
Manufacturer
Intersil
File Size
210.66 KB
Datasheet
IS-1009RH_IntersilCorporation.pdf
Description
Radiation Hardened 2.5V Reference
Note
This datasheet PDF includes multiple part numbers: IS-1009EH, IS-1009RH.
Please refer to the document for exact specifications by model.
