IS-2100ARH - Radiation Hardened High Frequency Half Bridge Driver

IS-2100ARH Description

IS-2100ARH, IS-2100AEH Radiation Hardened High Frequency Half Bridge Drivers Datasheet The radiation hardened IS-2100ARH, IS-2100AEH are high freque.

IS-2100ARH Features

* ▪ Electrically screened to DLA SMD # 5962-99536 ▪ QML qualified per MIL-PRF-38535 requirements ▪ Radiation environment
* TID Rad Hard Assurance (RHA) testing ◦ HDR (50-300rad(Si)/s): 300krad(Si) ◦ LDR (≤ 10mrad(Si)/s): 50krad(Si) (AEH Only)
* DI RSG process provides latch-up immunity

IS-2100ARH Applications

* ▪ High frequency switch-mode power supplies ▪ Drivers for inductive loads ▪ DC motor drivers FN9037 Rev.3.01 Aug 21, 2024 Page 1 © 2016-2024 Renesas Electronics IS-2100ARH, IS-2100AEH Datasheet 1. Overview 1.1 Block Diagram VDD HIN SD LIN R Q S VDD UV S R Q Level Shifter Logic Latch Err

📥 Download Datasheet

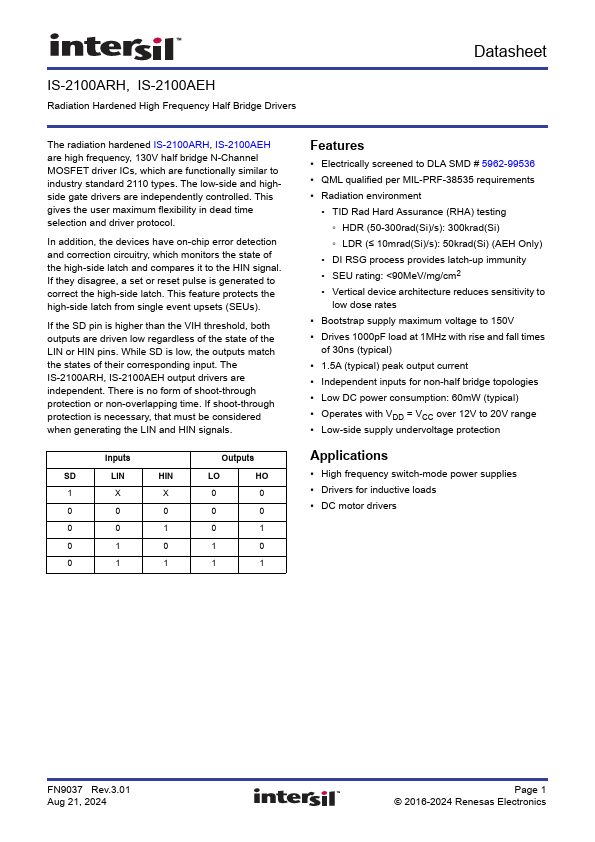

Preview of IS-2100ARH PDF

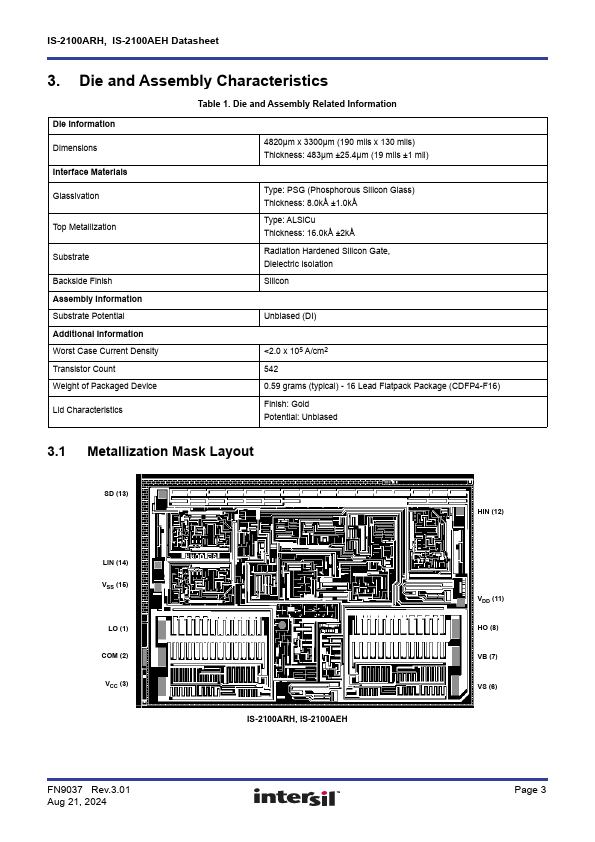

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IS-2100ARH
Manufacturer
Intersil Corporation
File Size
253.27 KB
Datasheet
IS-2100ARH_IntersilCorporation.pdf
Description
Radiation Hardened High Frequency Half Bridge Driver
