ILC7106S, ILC7107 - (ILC7106 / ILC7107) LCD Display

Intersil

Datasheet Details

Part number	ILC7106S, ILC7107
Manufacturer	Intersil
File Size	223.33 KB
Description	(ILC7106 / ILC7107) LCD Display
Datasheet	ILC7107_Intersil.pdf
Note	This datasheet PDF includes multiple part numbers: ILC7106S, ILC7107. Please refer to the document for exact specifications by model.

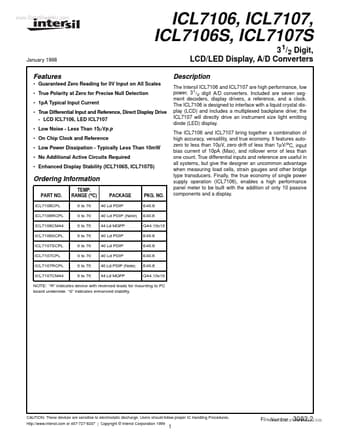

The Intersil ICL7106 and ICL7107 are high performance, low power, 31/2 digit A/D converters.

autozero to less than 10µV, zero drift of less than 1µV/oC, input bias current of 10pA (Max), and rollover error of less than one count. True differential inputs and reference are useful in all systems, but give the designer an uncommon advantage when measuring load cells, strain gauges and other bridge type transducers. Finally, the true economy of single power supply operation (ICL7106), enables a high performance panel meter to be built with the addition of only 10 passive components and a di.
