ILC7062 - SOT-23 CMOS LDO

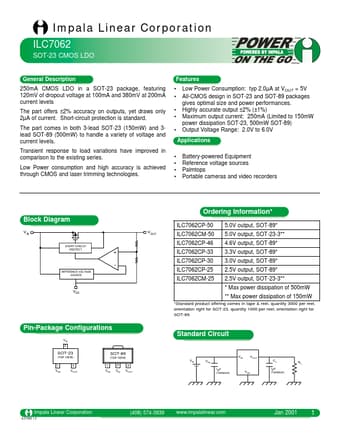

ILC7062 Datasheet Preview — Preview of ILC7062 PDF

Datasheet Details

Part number	ILC7062
Manufacturer	Impala Linear Corporation
File Size	377.96 KB
Description	SOT-23 CMOS LDO
Datasheet	ILC7062_ImpalaLinearCorporation.pdf

ILC7062 Product details

Description

250mA CMOS LDO in a SOT-23 package, featuring 120mV of dropout voltage at 100mA and 380mV at 200mA current levels The part offers ±2% accuracy on outputs, yet draws only 2µA of current.Short-circuit protection is standard.The part comes in both 3-lead SOT-23 (150mW) and 3lead SOT-89 (500mW) to handle a variety of voltage and current levels.Transient response to load variations have improved in comparison to the existing series.Low Power consumption and high accuracy is achieved through CMOS

Features

Low Power Consumption: typ 2.0µA at VOUT = 5V.
All-CMOS design in SOT-23 and SOT-89 packages gives optimal size and power performances.
Highly accurate output ±2% (±1%).
Maximum output current: 250mA (Limited to 150mW power dissipation SOT-23, 500mW SOT-89).
Output Voltage Range: 2.0V to 6.0V.
