HS-26CLV32EH, HS-26CLV32RH Radiation Hardened 3.3V Quad Differential Line Receivers

HS-26CLV32EH Description

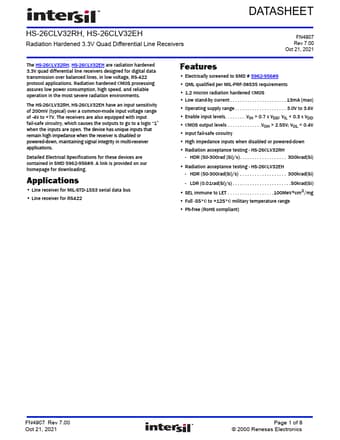

DATASHEET HS-26CLV32RH, HS-26CLV32EH Radiation Hardened 3.3V Quad Differential Line Receivers FN4907 Rev 7.00 Oct 21, 2021 The HS-26CLV32RH, HS-26C.
PKG.

HS-26CLV32EH Features

* Electrically screened to SMD # 5962-95689
* QML qualified per MIL-PRF-38535 requirements
* 1.2 micron radiation hardened CMOS
* Low stand-by current
* . . . 13mA (max)
* Operating supply range

HS-26CLV32EH Applications

* Radiation hardened CMOS processing assures low power consumption, high speed, and reliable operation in the most severe radiation environments. The HS-26CLV32RH, HS-26CLV32EH have an input sensitivity of 200mV (typical) over a common-mode input voltage range of -4V to +7V. The receivers are also eq

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HS-26CLV32EH, HS-26CLV32RH. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HS-26CLV32EH, HS-26CLV32RH
Manufacturer
Intersil
File Size
407.43 KB
Datasheet
HS-26CLV32RH-Intersil.pdf
Description
Radiation Hardened 3.3V Quad Differential Line Receivers
Note
This datasheet PDF includes multiple part numbers: HS-26CLV32EH, HS-26CLV32RH.
Please refer to the document for exact specifications by model.
