HS-26CLV31EH, HS-26CLV31RH Radiation Hardened 3.3V Quad Differential Line Drivers

HS-26CLV31EH Description

HS-26CLV31RH, HS-26CLV31EH Radiation Hardened 3.3V Quad Differential Line Drivers Datasheet .
The HS-26CLV31RH, HS-26CLV31EH are radiation hardened 3.

HS-26CLV31EH Features

* ▪ Electrically screened to SMD #5962-96663 ▪ QML qualified per MIL-PRF-38535 requirements ▪ 1.2 micron radiation hardened CMOS ▪ Extremely low stand-by current: 100µA (maximum) ▪ Operating supply range: 3.0V to 3.6V ▪ CMOS level inputs: VIH>(0.7) (VDD); VIL< (0.3) (VDD) ▪ Differential outputs: VOH >

HS-26CLV31EH Applications

* CMOS processing assures low power consumption, high speed, and reliable operation in the most severe radiation environments. The HS-26CLV31RH and HS-26CLV31EH accept CMOS level inputs and converts them to differential outputs. Enable pins allow several devices to be connected to the same data sourc

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HS-26CLV31EH, HS-26CLV31RH. Please refer to the document for exact specifications by model.

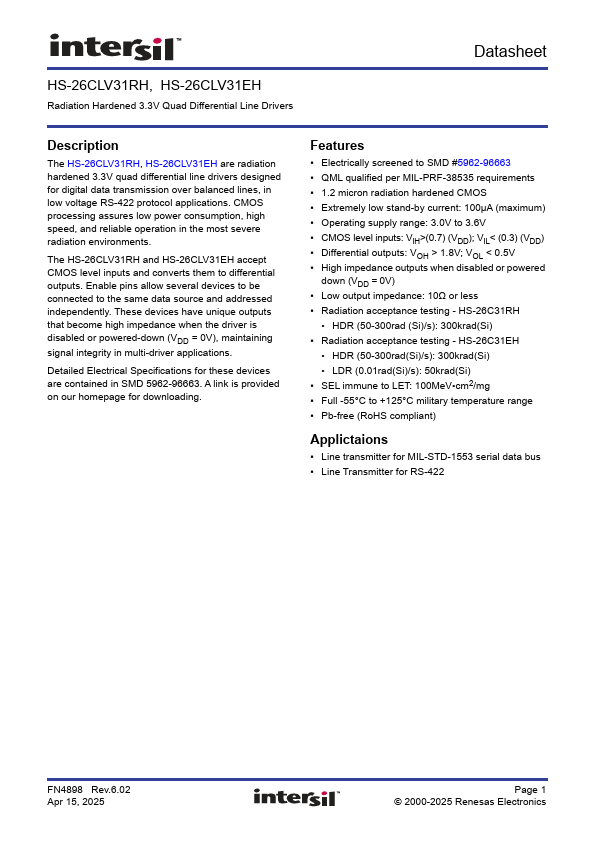

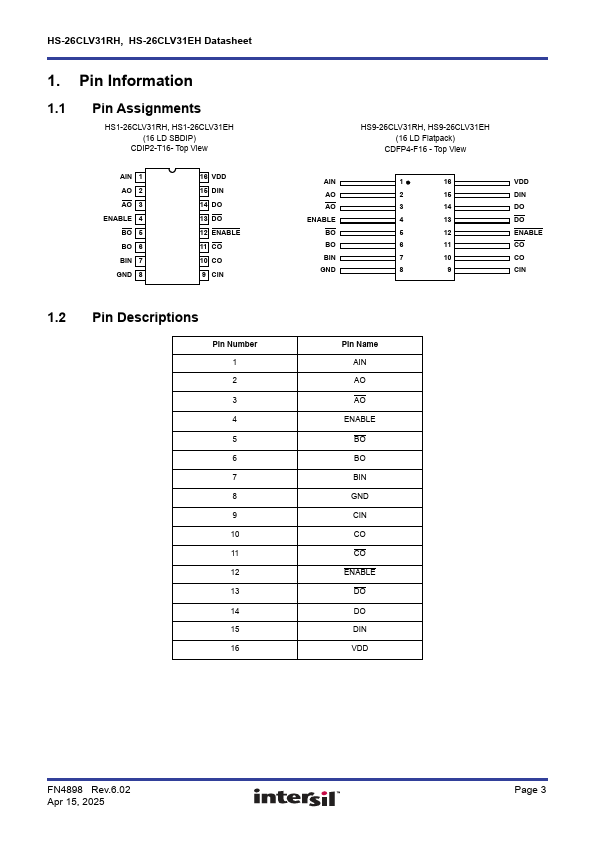

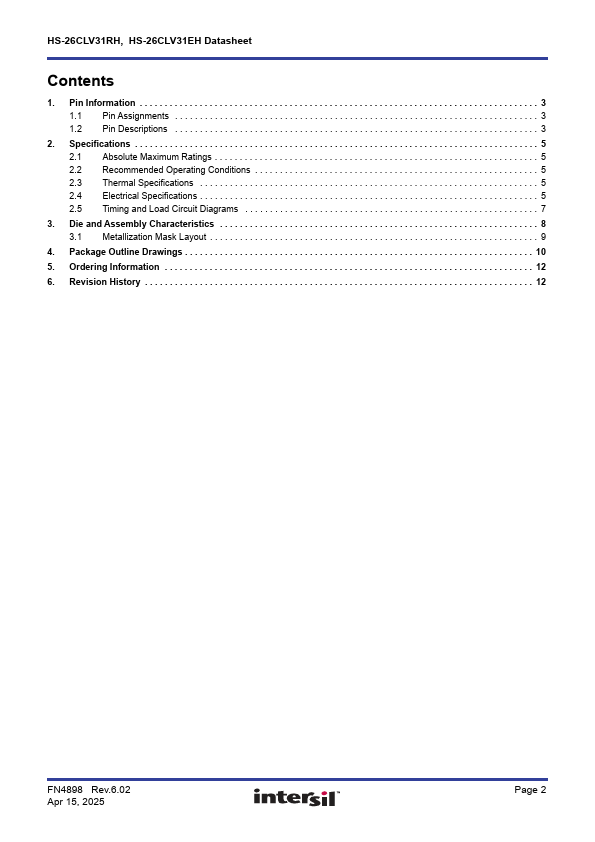

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HS-26CLV31EH, HS-26CLV31RH
Manufacturer
Intersil
File Size
577.72 KB
Datasheet
HS-26CLV31RH-Intersil.pdf
Description
Radiation Hardened 3.3V Quad Differential Line Drivers
Note
This datasheet PDF includes multiple part numbers: HS-26CLV31EH, HS-26CLV31RH.
Please refer to the document for exact specifications by model.
