FRM9140R - P-Channel Power MOSFET

Name: FRM9140R
SKU: FRM9140R-381178

Intersil

📥 Download Datasheet

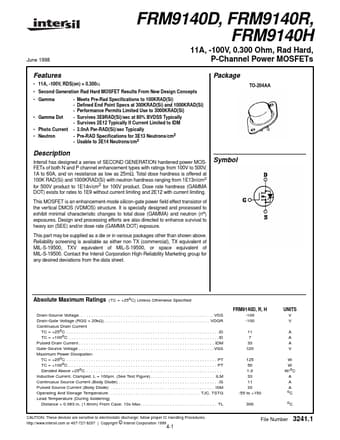

FRM9140R Datasheet Preview — Preview of FRM9140R PDF

Datasheet Details

Part number	FRM9140R
Manufacturer	Intersil
File Size	47.55 KB
Description	P-Channel Power MOSFET
Datasheet	FRM9140R_IntersilCorporation.pdf

FRM9140R Product details

Description

Intersil has designed a series of SECOND GENERATION hardened power MOSFETs of both N and P channel enhancement types with ratings from 100V to 500V, 1A to 60A, and on resistance as low as 25mΩ.

Features

11A, -100V, RDS(on) = 0.300Ω.
Second Generation Rad Hard MOSFET Results From New Design Concepts.
Gamma Meets Pre-Rad Speciﬁcations to 100KRAD(Si) Deﬁned End Point Specs at 300KRAD(Si) and 1000KRAD(Si) Performance Permits Limited Use to 3000KRAD(Si) Survives 3E9RAD(Si)/sec at 80% BVDSS Typically Survives 2E12 Typically If Current Limited to IDM 3.0nA Per-RAD(Si)/sec Typically Pre-RAD Speciﬁcations for 3E13 Neutrons/cm2 Usable to 3E14 Neutrons/cm2.
Gamma Dot.
