EL5120T - 12MHz Rail-to-Rail Input-Output Operational Amplifier

Intersil

The EL5120T by Intersil is a 12MHz Rail-to-Rail Input-Output Operational Amplifier. Below is the official datasheet preview.

📥 Download Datasheet

EL5120T 12MHz Rail-to-Rail Input-Output Operational Amplifier by Intersil - Datasheet Preview — Official preview page of the **EL5120T** 12MHz Rail-to-Rail Input-Output Operational Amplifier datasheet (Intersil).

Datasheet Details

Part number	EL5120T
Manufacturer	Intersil
File Size	416.13 KB
Description	12MHz Rail-to-Rail Input-Output Operational Amplifier
Datasheet	EL5120T-Intersil.pdf

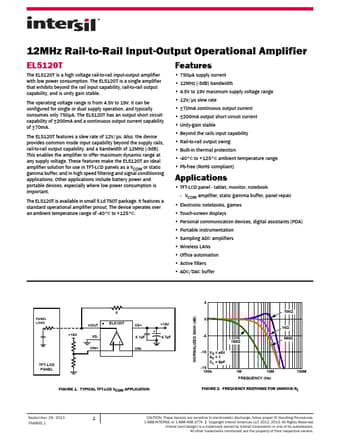

Additional preview pages of the EL5120T datasheet.

EL5120T Product details

Description

PIN NUMBER 1 2 3 4 5 PIN NAME VOUT VSVIN+ VINVS+ Amplifier output Negative power supply Amplifier non-inverting input Amplifier inverting input Positive power supply FUNCTION VS+ VOUT GND CIRCUIT 1 VS- VIN EQUIVALENT CIRCUIT (Reference “CIRCUIT 1”) (Reference “CIRCUIT 2”) (Reference “CIRCUIT 2”) VS+ CIRCUIT 2 VS- Ordering Information PART NUMBER (Notes 2, 3) PART MARKING PACKAGE (Pb-Free) PKG.DWG.# EL5120TIWTZ-T7 (Note 1) BESA 5 Ld TSOT MDP0049 NOTES: 1. Please refer to

Features

a slew rate of 12V/µs. Also, the device provides common mode input capability beyond the supply rails, rail-to-rail output capability, and a bandwidth of 12MHz (-3dB). This enables the amplifier to offer maximum dynamic range at any supply voltage. These features make the EL5120T an ideal amplifier solution for use in TFT-LCD panels as a VCOM or static gamma buffer, and in high speed filtering and signal conditioning.
