RF1S30N06LESM 30A/ 60V/ ESD Rated/ 0.047 Ohm/ Logic Level N-Channel Power MOSFETs

RF1S30N06LESM Description

RFP30N06LE, RF1S30N06LESM Data Sheet April 1999 File Number 3629.2 30A, 60V, ESD Rated, 0.047 Ohm, Logic Level N-Channel Power MOSFETs These are N-Ch.

RF1S30N06LESM Features

* 30A, 60V
* rDS(ON) = 0.047Ω
* 2kV ESD Protected
* Temperature Compensating PSPICE™ Model
* Peak Current vs Pulse Width Curve
* UIS Rating Curve
* Related Literature - TB334 “Guidelines for Soldering Surface Mount Components to PC Boards” [ /

RF1S30N06LESM Applications

* such as switching regulators, switching converters, motor drivers and relay drivers. These transistors can be operated directly from integrated circuits. These transistors incorporate ESD protection and are designed to withstand 2kV (Human Body Model) of ESD. Formerly developmental type TA49027. Fe

📥 Download Datasheet

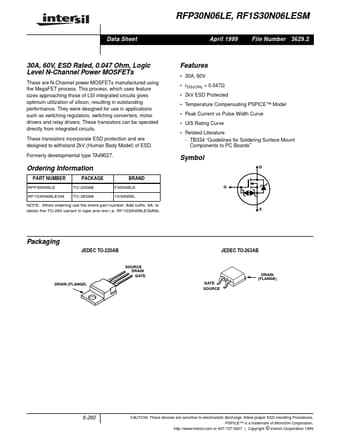

Preview of RF1S30N06LESM PDF
