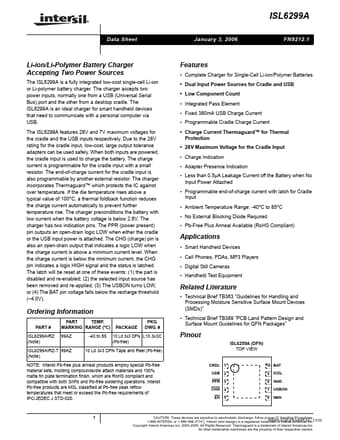

ISL6299A - Li-ion/Li-Polymer Battery Charger Accepting Two Power Sources

Intersil Corporation

Datasheet Details

Part number	ISL6299A
Manufacturer	Intersil Corporation
File Size	223.79 KB
Description	Li-ion/Li-Polymer Battery Charger Accepting Two Power Sources
Datasheet	ISL6299A_IntersilCorporation.pdf

CRDL (Pin 1) Crad

28V and 7V maximum voltages for the cradle and the USB inputs respectively. Due to the 28V rating for the cradle input, low-cost, large output tolerance adapters can be used safely. When both inputs are powered, the cradle input is used to charge the battery. The charge current is programmable for the cradle input with a small resistor. The end-of-charge current for the cradle input is also programmable by another external resistor. The charger incorporates Thermaguard™ which protects the IC aga.
