ISL6299 - Li-ion/Li-Polymer Battery Charger Accepting Two Power Sources

Intersil Corporation

📥 Download Datasheet

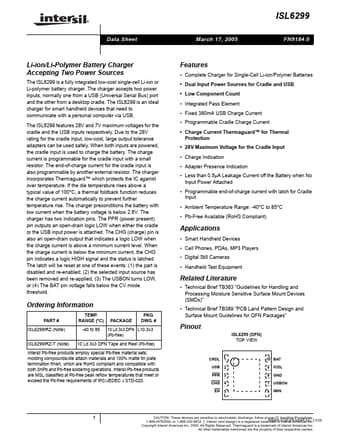

ISL6299 Datasheet Preview — Preview of ISL6299 PDF

Datasheet Details

Part number	ISL6299
Manufacturer	Intersil Corporation
File Size	228.05 KB
Description	Li-ion/Li-Polymer Battery Charger Accepting Two Power Sources
Datasheet	ISL6299_IntersilCorporation.pdf

ISL6299 Product details

Description

CRDL (Pin 1) Cradle input.This pin is usually connected to a cradle power input.The maximum input voltage is 28V.The charge current from this pin is programmable with the ICDL pin up to 1A.When this pin is connected to a power s

Features

28V and 7V maximum voltages for the cradle and the USB inputs respectively. Due to the 28V rating for the cradle input, low-cost, large output tolerance adapters can be used safely. When both inputs are powered, the cradle input is used to charge the battery. The charge current is programmable for the cradle input with a small resistor. The end-of-charge current for the cradle input is also programmable by another external resistor. The charger incorporates Thermaguard™ which protects the IC aga.
