ISL59533 - 32x32 Video Crosspoint

Intersil Corporation

📥 Download Datasheet

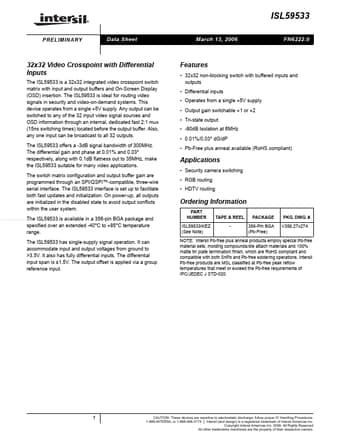

ISL59533 Datasheet Preview — Preview of ISL59533 PDF

Datasheet Details

Part number	ISL59533
Manufacturer	Intersil Corporation
File Size	1.22 MB
Description	32x32 Video Crosspoint
Datasheet	ISL59533_IntersilCorporation.pdf

ISL59533 Product details

Description

GM Gain Matching (to average of all other outputs) Input Voltage Range Output Voltage Range Input Bias Current Output Offset Voltage G=1 G=2 G=1 G = 2, RL = 150Ω VIN VOUT IB VOS IOUT Output Current Sourcing, RL = 10Ω to GND Sinking, RL to 2.5V PSRR IS Power Supply Rejection Ratio Supply Current AC Electrical Specifications PARAMETER BW -3dB BW 0.1dB SR TS Glitch Tover dG/dP DESCRIPTION 3dB Bandwidth 0.1dB Bandwidth Slew Rate Settling Time to 0.1% Switching Glitch, Peak Overlay Delay Ti

Features

32x32 non-blocking switch with buffered inputs and outputs.
Differential inputs.
Operates from a single +5V supply.
Output gain switchable +1 or +2.
Tri-state output.
-80dB Isolation at 6MHz.
0.01%/0.03° dG/dP.
Pb-Free plus anneal available (RoHS compliant).
