ISL59531 - 16x16 Video Crosspoint

Intersil Corporation

📥 Download Datasheet

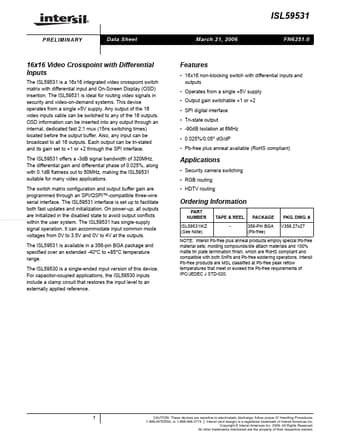

ISL59531 Datasheet Preview — Preview of ISL59531 PDF

Datasheet Details

Part number	ISL59531
Manufacturer	Intersil Corporation
File Size	1.19 MB
Description	16x16 Video Crosspoint
Datasheet	ISL59531_IntersilCorporation.pdf

ISL59531 Product details

Description

GM Gain Matching (to average of all other outputs) Input Voltage Range Output Voltage Range Input Bias Current Output Offset Voltage AV = 1 AV = 2 AV = 1 AV = 2, RL = 150Ω VIN VOUT IB VOS IOUT Output Current Sourcing, RL = 10Ω to GND Sinking, RL to 2.5V PSRR IS Power Supply Rejection Ratio Supply Current AC Electrical Specifications PARAMETER BW -3dB BW 0.1dB SR TS Glitch Tover dG dP Xt VN DESCRIPTION 3dB Bandwidth 0.1dB Bandwidth Slew Rate Settling Time to 0.1% Switching Glitch, Peak

Features

16x16 non-blocking switch with differential inputs and outputs.
Operates from a single +5V supply.
Output gain switchable +1 or +2.
SPI digital interface.
Tri-state output.
-90dB Isolation at 6MHz.
0.025%/0.05° dG/dP.
Pb-free plus anneal available (RoHS compliant).
