ISL3684 - Direct Down Conversion Transceiver

Intersil Corporation

📥 Download Datasheet

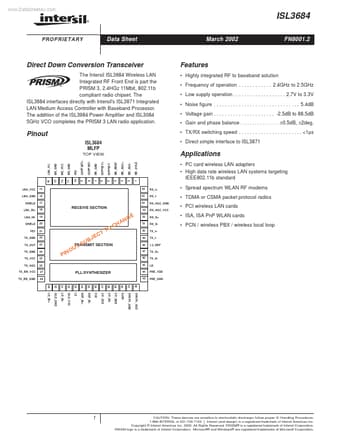

ISL3684 Datasheet Preview — Preview of ISL3684 PDF

Datasheet Details

Part number	ISL3684
Manufacturer	Intersil Corporation
File Size	41.50 KB
Description	Direct Down Conversion Transceiver
Datasheet	ISL3684_IntersilCorporation.pdf

ISL3684 Product details

Features

Highly integrated RF to baseband solution.
Frequency of operation.
. . 2.4GHz to 2.5GHz.
Low supply operation.
. . . . 2.7V to 3.3V.
Noise figure.
. 5.4dB.
Voltage gain.
. . -2.5dB to 88.5dB.
Gain and phase balance.
. ±0.5dB, ±2deg.
TX/RX switching speed.
