ISL3034E - Auto-Direction Sensing Logic Level Translator

Renesas

📥 Download Datasheet

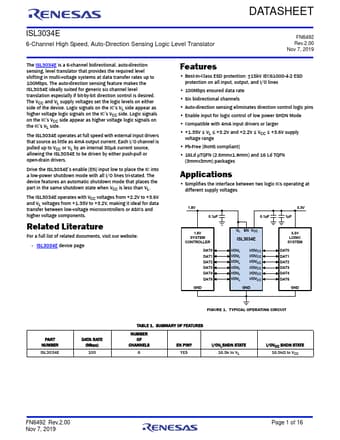

ISL3034E Datasheet Preview — Preview of ISL3034E PDF

Datasheet Details

Part number	ISL3034E
Manufacturer	Renesas
File Size	888.15 KB
Description	Auto-Direction Sensing Logic Level Translator
Datasheet	ISL3034E-Renesas.pdf

ISL3034E Product details

Description

NAME VCC VL GND EN I/OVCCx I/OVLx FUNCTION VCC power supply, +2.2V to +3.6V.Decouple VCC to ground with a 0.1µF capacitor.VL logic supply, +1.35V to +3.2V.Decouple VL to ground with a 0.1µF capacitor.Ground Pin ±15kV IEC61000 ESD Protected Enable Input.Logic “0” puts the device in shutdown.Logic “1” enables the device.±15kV IEC61000 ESD Protected Input/Output channel referenced to VCC.±15kV IEC61000 ESD Protected Input/Output channel referenced to VL.FN6492 Rev.2.00 Nov 7, 2019 Pag

Features

an automatic shutdown mode that places the part in the same shutdown state when VCC is less than VL. The ISL3034E operates with VCC voltages from +2.2V to +3.6V and VL voltages from +1.35V to +3.2V, making it ideal for data transfer between low-voltage microcontrollers or ASICs and higher voltage components. Related Literature For a full list of related documents, visit our website: - ISL3034E device page Features.
Best-In-Class ESD protection: ±15kV IEC61000-4-2 ESD protection on all.
