HUF75333S3S - N-Channel MOSFET

Intersil Corporation

📥 Download Datasheet

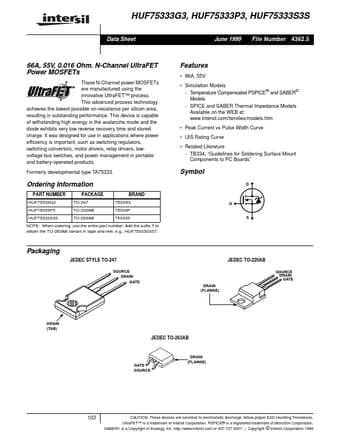

HUF75333S3S Datasheet Preview — Preview of HUF75333S3S PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	HUF75333S3S
Manufacturer	Intersil Corporation
File Size	108.43 KB
Description	N-Channel MOSFET
Datasheet	HUF75333S3S_IntersilCorporation.pdf

HUF75333S3S Product details

Features

66A, 55V.
Simulation Models - Temperature Compensated PSPICE® and SABER© Models - SPICE and SABER Thermal Impedance Models Available on the WEB at: www. Intersil. com/families/models. htm.
Peak Current vs Pulse Width Curve.
UIS Rating Curve.
Related Literature - TB334, “Guidelines for Soldering Surface Mount Components to PC Boards” Symbol D Ordering Information PART NUMBER HUF75333G3 HUF75333P3 HUF75333S3S.
