HUF75332P3 - N-Channel MOSFET

Fairchild Semiconductor

📥 Download Datasheet

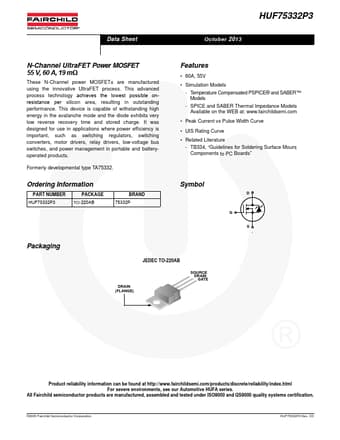

HUF75332P3 Datasheet Preview — Preview of HUF75332P3 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	HUF75332P3
Manufacturer	Fairchild ↗ Semiconductor
File Size	736.52 KB
Description	N-Channel MOSFET
Datasheet	HUF75332P3_FairchildSemiconductor.pdf

HUF75332P3 Product details

Features

60A, 55V.
Simulation Models - Temperature Compensated PSPICE® and SABER™ Models - SPICE and SABER Thermal Impedance Models Available on the WEB at: www. fairchildsemi. com.
Peak Current vs Pulse Width Curve.
UIS Rating Curve.
Related Literature - TB334, “Guidelines for Soldering Surface Mount Components to PC Boards” Symbol D G S Packaging JEDEC TO-220AB DRAIN (FLANGE) SOURCE DRAIN GATE Product reliability information can be found at http://www. f.
