HIP7030A0 - J1850 8-Bit 68HC05 Microcontroller Emulator Version

Name: HIP7030A0
SKU: HIP7030A0-75767

Intersil Corporation

📥 Download Datasheet

HIP7030A0 Datasheet Preview — Preview of HIP7030A0 PDF

Datasheet Details

Part number	HIP7030A0
Manufacturer	Intersil Corporation
File Size	44.66 KB
Description	J1850 8-Bit 68HC05 Microcontroller Emulator Version
Datasheet	HIP7030A0_IntersilCorporation.pdf

HIP7030A0 Product details

Description

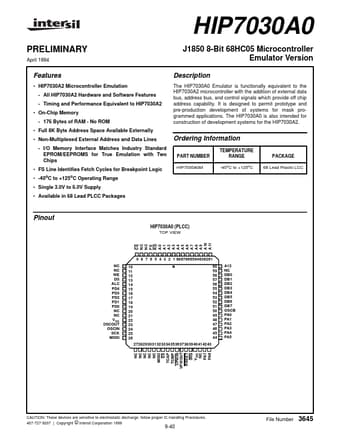

The HIP7030A0 Emulator is functionally equivalent to the HIP7030A2 microcontroller with the addition of external data bus, address bus, and control signals which provide off chip address capability.

Features

HIP7030A2 Microcontroller Emulation - All HIP7030A2 Hardware and Software Features - Timing and Performance Equivalent to HIP7030A2.
On-Chip Memory - 176 Bytes of RAM - No ROM.
Full 8K Byte Address Space Available Externally.
Non-Multiplexed External Address and Data Lines - I/O Memory Interface Matches Industry Standard EPROM/.
