DG187BP - High-Speed Drivers with JFET Switch

Intersil Corporation

The DG187BP by Intersil Corporation is a High-Speed Drivers with JFET Switch. Below is the official datasheet preview.

📥 Download Datasheet

DG187BP High-Speed Drivers with JFET Switch by Intersil Corporation - Datasheet Preview — Official preview page of the **DG187BP** High-Speed Drivers with JFET Switch datasheet (Intersil Corporation).

Datasheet Details

Part number	DG187BP
Manufacturer	Intersil Corporation
File Size	75.35 KB
Description	High-Speed Drivers with JFET Switch
Datasheet	DG187BP_IntersilCorporation.pdf

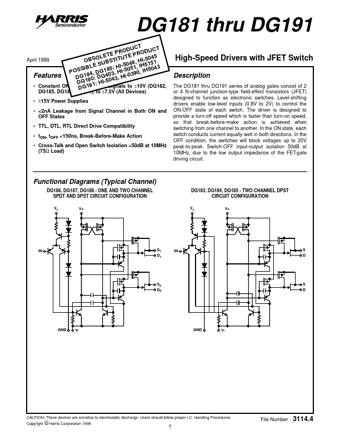

Additional preview pages of the DG187BP datasheet.

DG187BP Product details

Description

The DG181 thru DG191 series of analog gates consist of 2 or 4 N-channel junction-type ﬁeld-effect transistors (JFET) designed to function as electronic switches.

Features

DG 90: DG 043, HI DG1 91: HI-5.
Constant ON-Resistance for Signals to ±10V (DG182, DG1 DG185, DG188, DG191), to ±7.5V (All Devices).
±15V Power Supplies.
