CS80C88 - CMOS 8/16-Bit Microprocessor

Intersil Corporation

The CS80C88 by Intersil Corporation is a CMOS 8/16-Bit Microprocessor. Below is the official datasheet preview.

📥 Download Datasheet

CS80C88 CMOS 8/16-Bit Microprocessor by Intersil Corporation - Datasheet Preview — Official preview page of the CS80C88 CMOS 8/16-Bit Microprocessor datasheet (Intersil Corporation).

Datasheet Details

Part number	CS80C88
Manufacturer	Intersil Corporation
File Size	246.45 KB
Description	CMOS 8/16-Bit Microprocessor
Datasheet	CS80C88_IntersilCorporation.pdf

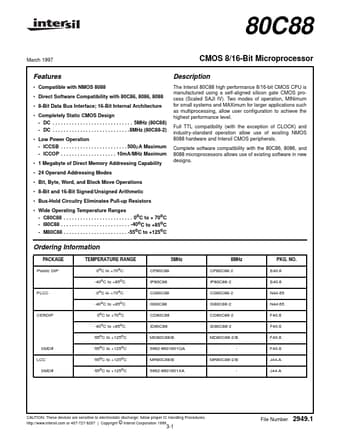

Additional preview pages of the CS80C88 datasheet.

CS80C88 Product details

Description

The Intersil 80C88 high performance 8/16-bit CMOS CPU is manufactured using a self-aligned silicon gate CMOS process (Scaled SAJI IV).

Features

Compatible with NMOS 8088.
Direct Software Compatibility with 80C86, 8086, 8088.
8-Bit Data Bus Interface; 16-Bit Internal Architecture.
Completely Static CMOS Design - DC.
. . . . 5MHz (80C88) - DC.
. . .8MHz (80C88-2).
Low Power Operation - ICCSB.
. . . . 500µA Maximum - ICCOP.
10mA/MHz Maximu.
