CS82C54Z - CMOS Programmable Interval Timer

Download the CS82C54Z datasheet PDF (CS82C54 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for cmos programmable interval timer.

Features

  • 8MHz to 12MHz Clock Input Frequency.
  • Compatible with NMOS 8254 - Enhanced Version of NMOS 8253.
  • Three Independent 16-Bit Counters.
  • Six Programmable Counter Modes.
  • Status Read Back Command.
  • Binary or BCD Counting.
  • Fully TTL Compatible.
  • Single 5V Power Supply.
  • Low Power - ICCSB.
  • . . . . .10µA - ICCOP.
  • . 10mA at 8MHz.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (CS82C54_IntersilCorporation.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

  • CS82C50A-5Z - CMOS Serial Controller Interface (Renesas)
  • CS82C52 - CMOS Serial Controller Interface (Renesas)
  • CS82C52Z - CMOS Serial Controller Interface (Renesas)
  • CS82C55A - CMOS Programmable Peripheral Interface (Harris Corporation)
  • CS82C37A - CMOS High Performance Programmable DMA Controller (Harris Corporation)
  • CS8205 - N-Channel Trench Power MOSFET (CASS)
  • CS8205E - N-Channel Trench Power MOSFET (CASS)
  • CS8205G - N-Channel Trench Power MOSFET (CASS)
  • CS8220 - PC / AT Compatible Chipset (CHIPS)
  • CS8221 - Micropower 5V/ 100mA Low Dropout Linear Regulator (Cherry Semiconductor Corporation)
Other Datasheets by Intersil Corporation
  • CS82C54 - CMOS Programmable Interval Timer
  • CS82C52 - CMOS Serial Controller Interface
  • CS82C55A - CMOS Programmable Peripheral Interface
  • CS82C59A - CMOS Priority Interrupt Controller
  • CS82C237 - CMOS High Performance Programmable DMA Controller
  • CS82C37A - CMOS High Performance Programmable DMA Controller
  • CS82C82 - CMOS Octal Latching Bus Driver
  • CS82C83H - CMOS Octal Latching Inverting Bus Driver

Full PDF Text Transcription

Click to expand full text

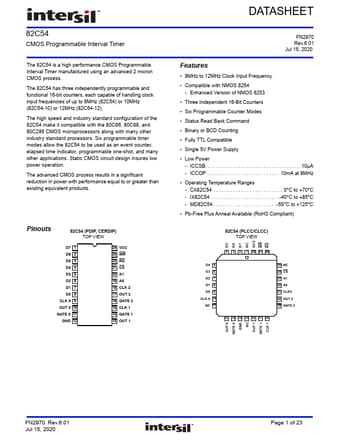

82C54 CMOS Programmable Interval Timer The 82C54 is a high performance CMOS Programmable Interval Timer manufactured using an advanced 2 micron CMOS process. The 82C54 has three independently programmable and functional 16-bit counters, each capable of handling clock input frequencies of up to 8MHz (82C54) or 10MHz (82C54-10) or 12MHz (82C54-12). The high speed and industry standard configuration of the 82C54 make it compatible with the 80C86, 80C88, and 80C286 CMOS microprocessors along with many other industry standard processors. Six programmable timer modes allow the 82C54 to be used as an event counter, elapsed time indicator, programmable one-shot, and many other applications. Static CMOS circuit design insures low power operation.
