CDP1879 - CMOS Real-Time Clock

Intersil Corporation

The CDP1879 by Intersil Corporation is a CMOS Real-Time Clock. Below is the official datasheet preview.

📥 Download Datasheet

CDP1879 CMOS Real-Time Clock by Intersil Corporation - Datasheet Preview — Official preview page of the CDP1879 CMOS Real-Time Clock datasheet (Intersil Corporation).

Datasheet Details

Part number	CDP1879
Manufacturer	Intersil Corporation
File Size	100.32 KB
Description	CMOS Real-Time Clock
Datasheet	CDP1879_IntersilCorporation.pdf

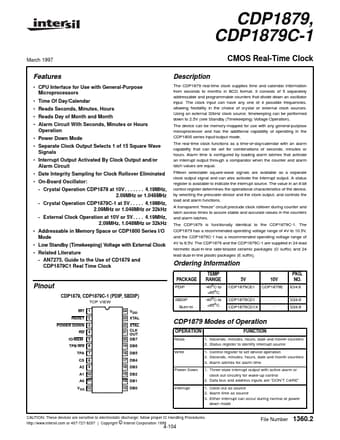

Additional preview pages of the CDP1879 datasheet.

CDP1879 Product details

Description

The CDP1879 real-time clock supplies time and calendar information from seconds to months in BCD format.

Features

CPU Interface for Use with General-Purpose Microprocessors.
Time Of Day/Calendar.
Reads Seconds, Minutes, Hours.
Reads Day of Month and Month.
Alarm Circuit With Seconds, Minutes or Hours Operation.
Power Down Mode.
Separate Clock Output Selects 1 of 15 Square Wave Signals.
Interrupt Output Activated By Clock Output and/or Alarm Circuit.
Date Integrity Sampling for Clock Rollover Eliminated.
On-Board Oscil.
