CDP1872 - High-Speed 8-Bit Input and Output Ports

Intersil Corporation

The CDP1872 by Intersil Corporation is a High-Speed 8-Bit Input and Output Ports. Below is the official datasheet preview.

📥 Download Datasheet

CDP1872 High-Speed 8-Bit Input and Output Ports by Intersil Corporation - Datasheet Preview — Official preview page of the **CDP1872** High-Speed 8-Bit Input and Output Ports datasheet (Intersil Corporation).

Datasheet Details

Part number	CDP1872
Manufacturer	Intersil Corporation
File Size	32.48 KB
Description	High-Speed 8-Bit Input and Output Ports
Datasheet	CDP1872_IntersilCorporation.pdf

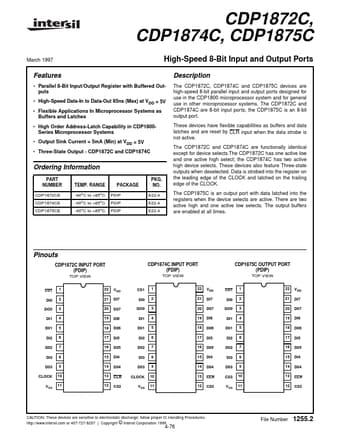

Additional preview pages of the CDP1872 datasheet.

CDP1872 Product details

Description

The CDP1872C, CDP1874C and CDP1875C devices are high-speed 8-bit parallel input and output ports designed for use in the CDP1800 microprocessor system and for general use in other microprocessor systems.

Features

Parallel 8-Bit Input/Output Register with Buffered Outputs.
High-Speed Data-In to Data-Out 85ns (Max) at VDD = 5V.
Flexible.
