ST1000K - (ST1000C-K Series) PHASE CONTROL THYRISTORS

Download the ST1000K datasheet PDF (ST1000C included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for (st1000c-k series) phase control thyristors.

Features

  • www. DataSheet4U. com Center amplifying gate Metal case with ceramic insulator International standard case A-24 (K-PUK) High profile hockey-puk 1473A Typical.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (ST1000C_InternationalRectifier.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

  • ST1000-30T3MI - Wet Tantalum Capacitors (Vishay)
  • ST1000C12K - (ST1000CxxK) Phase Control Thyristors (Vishay Siliconix)
  • ST1000C16K - (ST1000CxxK) Phase Control Thyristors (Vishay Siliconix)
  • ST1000C18K - (ST1000CxxK) Phase Control Thyristors (Vishay Siliconix)
  • ST1000C20K - (ST1000CxxK) Phase Control Thyristors (Vishay Siliconix)
  • ST1000C22K - (ST1000CxxK) Phase Control Thyristors (Vishay Siliconix)
  • ST1000C24K - (ST1000CxxK) Phase Control Thyristors (Vishay Siliconix)
  • ST1000C26K - (ST1000CxxK) Phase Control Thyristors (Vishay Siliconix)
  • ST1000GXH35 - Silicon N-Channel IEGT (Toshiba)
  • ST100-125T3MI - Wet Tantalum Capacitors (Vishay)
Other Datasheets by International Rectifier
  • ST1000C - (ST1000C-K Series) PHASE CONTROL THYRISTORS
  • ST103xxx - Inverter Type Thyristors
  • ST110S - PHASE CONTROL THYRISTORS Stud Version
  • ST1200C - PHASE CONTROL THYRISTORS Hockey Puk Version
  • ST1200CxxK - PHASE CONTROL THYRISTORS Hockey Puk Version
  • ST1230C - PHASE CONTROL THYRISTORS Hockey Puk Version
  • ST1230CxxK - PHASE CONTROL THYRISTORS Hockey Puk Version
  • ST1280C - PHASE CONTROL THYRISTORS

Full PDF Text Transcription

Click to expand full text

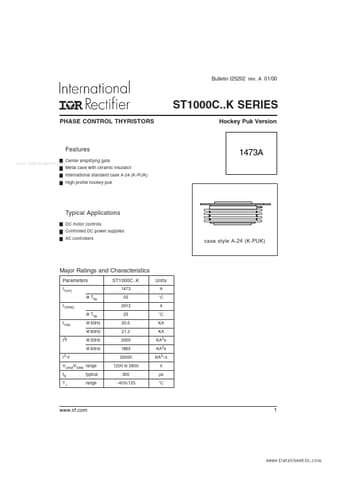

Bulletin I25202 rev. A 01/00 ST1000C..K SERIES PHASE CONTROL THYRISTORS Hockey Puk Version Features www.DataSheet4U.com Center amplifying gate Metal case with ceramic insulator International standard case A-24 (K-PUK) High profile hockey-puk 1473A Typical Applications DC motor controls Controlled DC power supplies AC controllers case style A-24 (K-PUK) Major Ratings and Characteristics Parameters I T(AV) @ Ths I T(RMS) @ Ths I TSM 2 ST1000C..K 1473 55 2913 25 20.0 21.2 2000 1865 20000 1200 to 2600 300 - 40 to 125 Units A °C A °C KA KA KA2s KA2s KA2√ s V µs °C @ 50Hz @ 60Hz I t @ 50Hz @ 60Hz I 2√t V DRM/VRRM range tq TJ typical range www.irf.com 1 ST1000C..K Series Bulletin I25202 rev.
