SD403C FAST RECOVERY DIODES Hockey Puk Version

SD403C Description

Bulletin I2067 rev.C 04/00 SD403C..C SERIES FAST RECOVERY DIODES .

SD403C Features

* High power FAST recovery diode series 1.0 to 1.5 µs recovery time High voltage ratings up to 1600V High current capability Optimized turn on and turn off characteristics Low forward recovery Fast and soft reverse recovery Press-puk encapsulation Case style conform to JEDEC DO-200AA Maximum junction

SD403C Applications

* Snubber diode for GTO High voltage free-wheeling diode Fast recovery rectifier applications case style DO-200AA Major Ratings and Characteristics Parameters IF(AV) @ T hs IF(RMS) @ T hs IFSM @ 50Hz @ 60Hz It 2 SD403C. . C 430 55 675 25 6180 6470 191 175 400 to 1600 1.0 to 1.5 Units A °C A °C A A K

📥 Download Datasheet

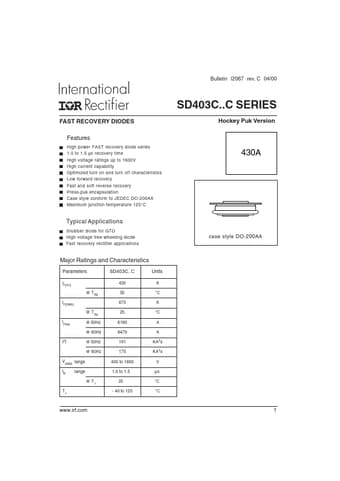

Preview of SD403C PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SD403C
Manufacturer
International Rectifier
File Size
163.88 KB
Datasheet
SD403C_InternationalRectifier.pdf
Description
FAST RECOVERY DIODES Hockey Puk Version
