SD4013 - RF & MICROWAVE TRANSISTORS UHF COMMUNICATIONS APPLICATIONS

Description

The SD4013 is a gold metallized epitaxial silicon NPN planar transistor using diffused emitter ballast resistors for superior ruggedness.

The SD4013 can withstand 20:1 VSWR under rated operating conditions and is internally input matched to optimize power gain and efficiency over the band.

📥 Download Datasheet

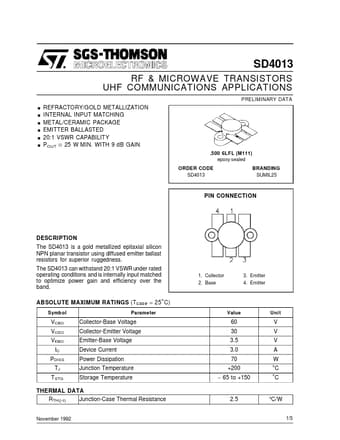

Datasheet preview – SD4013

Datasheet Details

Part number SD4013
Manufacturer STMicroelectronics
File Size 50.46 KB
Description RF & MICROWAVE TRANSISTORS UHF COMMUNICATIONS APPLICATIONS
Datasheet download datasheet SD4013 Datasheet
Additional preview pages of the SD4013 datasheet.

📁 Similar Datasheet

  • SD400 - (SD400 / SD402) High-Speed Analog N-Channel/Enhancement-Mode DMOS FETS (Calogic)
  • SD4000C - STANDARD RECOVERY DIODES Hockey Puk Version (International Rectifier)
  • SD4001 - 4BIT MICRO CONTROLLER (AUK)
  • SD4002 - 4BIT MICRO CONTROLLER (AUK)
  • SD400C - STANDARD RECOVERY DIODES (International Rectifier)
  • SD400N - STANDARD RECOVERY DIODES Stud Version (International Rectifier)
  • SD400R - STANDARD RECOVERY DIODES Stud Version (International Rectifier)
  • SD402 - (SD400 / SD402) High-Speed Analog N-Channel/Enhancement-Mode DMOS FETS (Calogic)
  • SD4027 - NPN SILICON RF POWER TRANSISTOR (Advanced Semiconductor)
  • SD403 - High Speed DMOS N-Channel Switch (Calogic)
Other Datasheets by ST Microelectronics
  • SD4010 - RF & MICROWAVE TRANSISTORS UHF TV LINEAR APPLICATIONS
  • SD4011 - RF & MICROWAVE TRANSISTORS UHF TV/LINEAR APPLICATIONS
  • SD4017 - RF & MICROWAVE TRANSISTORS 806-960 MHz CELLULAR BASE STATIONS
  • SD4100 - RF POWER TRANSISTORS UHF TV/LINEAR APPLICATIONS
  • SD4590 - RF POWER TRANSISTORS
  • SD4600 - RF & MICROWAVE TRANSISTORS
  • SD4701 - RF & MICROWAVE TRANSISTORS

Full PDF Text Transcription

Click to expand full text
SD4013 RF & MICROWAVE TRANSISTORS UHF COMMUNICATIONS APPLICATIONS . . . . . . PRELIMINARY DATA REFRACTORY/GOLD METALLIZATION INTERNAL INPUT MATCHING METAL/CERAMIC PACKAGE EMITTER BALLASTED 20:1 VSWR CAPABILITY P OUT = 25 W MIN. WITH 9 dB GAIN .500 6LFL (M111) epoxy sealed ORDER CODE SD4013 BRANDING SUMIL25 PIN CONNECTION DESCRIPTION The SD4013 is a gold metallized epitaxial silicon NPN planar transistor using diffused emitter ballast resistors for superior ruggedness. The SD4013 can withstand 20:1 VSWR under rated operating conditions and is internally input matched to optimize power gain and efficiency over the band. ABSOLUTE MAXIMUM RATINGS (T case = 25 ° C) Symbol Parameter Value Unit 1. Collector 2. Base 3. Emitter 4.
