IRS4426PbF, IRS4426SPbF DUAL LOW SIDE DRIVER

International Rectifier

Description

Data Sheet No.PD60278 IRS4426/IRS4427/IRS4428(S)PbF .
The IRS4426/IRS4427/IRS4428 are low voltage, high speed power MOSFET and IGBT driver.

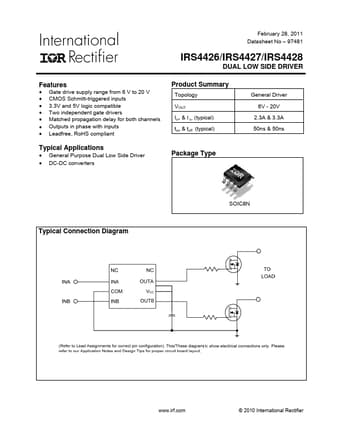

📥 Download Datasheet

IRS4426PbF Datasheet Preview — This datasheet PDF includes multiple part numbers: IRS4426PbF, IRS4426SPbF. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: IRS4426PbF, IRS4426SPbF
Manufacturer: International Rectifier
File Size: 358.03 KB
Datasheet: IRS4426SPbF-InternationalRectifier.pdf
Description: DUAL LOW SIDE DRIVER
Note: This datasheet PDF includes multiple part numbers: IRS4426PbF, IRS4426SPbF.
Please refer to the document for exact specifications by model.

Features

* Gate drive supply range from 6 V to 20 V
* CMOS Schmitt-triggered inputs
* Matched propagation delay for both channels
* Outputs out of phase with inputs (IRS4426)
* Outputs in phase with inputs (IRS4427)
* OutputA out of phase with inputA and output
