IRS-5-10-Q48, IRS-3.3-15-Q48 - Wide Input Isolated DC-DC Converters

muRata

📥 Download Datasheet

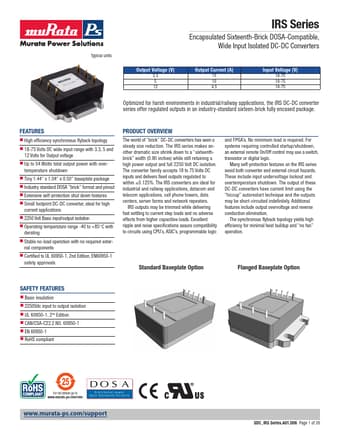

IRS-5-10-Q48 Datasheet Preview — This datasheet PDF includes multiple part numbers: IRS-5-10-Q48, IRS-3.3-15-Q48. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	IRS-5-10-Q48, IRS-3.3-15-Q48
Manufacturer	muRata
File Size	2.03 MB
Description	Wide Input Isolated DC-DC Converters
Datasheet	IRS-3.3-15-Q48-muRata.pdf
Note	This datasheet PDF includes multiple part numbers: IRS-5-10-Q48, IRS-3.3-15-Q48. Please refer to the document for exact specifications by model.

IRS-5-10-Q48 Product details

Features

High efficiency synchronous flyback topology.
18-75 Volts DC wide input range with 3.3, 5 and 12 Volts for Output voltage.
Up to 54 Watts total output power with overtemperature shutdown.
Tiny 1.44" x 1.04" x 0.50" baseplate package.
Industry standard DOSA "brick" format and pinout.
Extensive self-protection shut down features.
Small footprint DC-DC converter, ideal for high cu.
