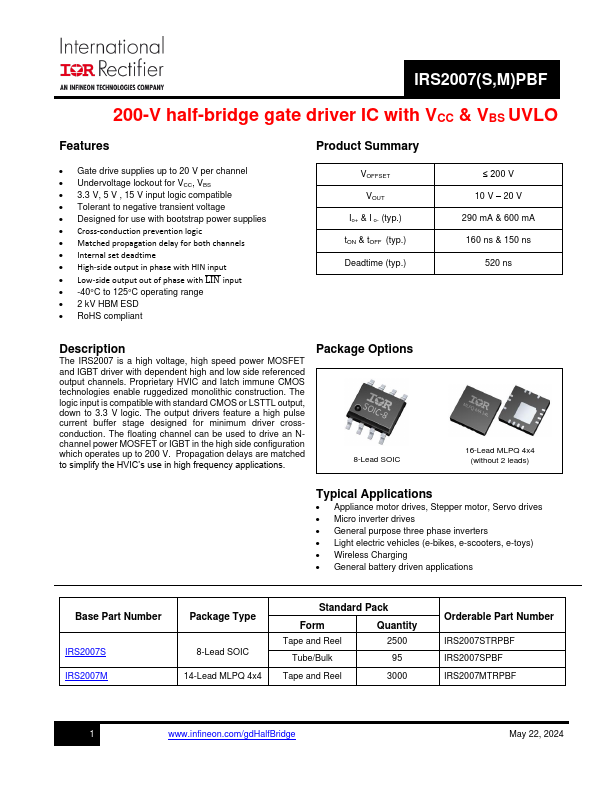

IRS2007S, IRS2007SPBF 200-V half-bridge gate driver

International Rectifier

Description

IRS2007(S,M)PBF 200-V half-bridge gate driver IC with VCC & VBS UVLO .
The IRS2007 is a high voltage, high speed power MOSFET and IGBT driver with dependent high and low side referenced output channels.

📥 Download Datasheet

IRS2007S Datasheet Preview — This datasheet PDF includes multiple part numbers: IRS2007S, IRS2007SPBF. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: IRS2007S, IRS2007SPBF
Manufacturer: International Rectifier
File Size: 1.77 MB
Datasheet: IRS2007SPBF-InternationalRectifier.pdf
Description: 200-V half-bridge gate driver
Note: This datasheet PDF includes multiple part numbers: IRS2007S, IRS2007SPBF.
Please refer to the document for exact specifications by model.

Features

* Product Summary
* Gate drive supplies up to 20 V per channel
* Undervoltage lockout for VCC, VBS
* 3.3 V, 5 V , 15 V input logic compatible
* Tolerant to negative transient voltage
* Designed for use with bootstrap power supplies
* Cross-conduction p

Applications

* Package Options 8-Lead SOIC 16-Lead MLPQ 4x4 (without 2 leads) Typical Applications
* Appliance motor drives, Stepper motor, Servo drives
* Micro inverter drives
* General purpose three phase inverters
* Light electric vehicles (e-bikes, e-scooters, e-toys)
