IRS2003SPBF, IRS2003PBF - HALF-BRIDGE DRIVER

International Rectifier

The IRS2003SPBF by International Rectifier is a HALF-BRIDGE DRIVER. Below is the official datasheet preview.

📥 Download Datasheet

IRS2003SPBF HALF-BRIDGE DRIVER by International Rectifier - Datasheet Preview — Official preview page of the **IRS2003SPBF** HALF-BRIDGE DRIVER datasheet (International Rectifier).

Datasheet Details

Part number	IRS2003SPBF, IRS2003PBF
Manufacturer	International Rectifier
File Size	331.60 KB
Description	HALF-BRIDGE DRIVER
Datasheet	IRS2003PBF_InternationalRectifier.pdf
Note	This datasheet PDF includes multiple part numbers: IRS2003SPBF, IRS2003PBF. Please refer to the document for exact specifications by model.

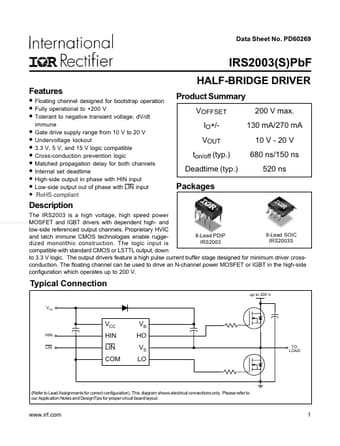

Additional preview pages of the IRS2003SPBF datasheet.

IRS2003SPBF Product details

Description

www.DataSheet4U.com The IRS2003 is a high voltage, high speed power MOSFET and IGBT drivers with dependent high- and low-side referenced output channels.Proprietary HVIC 8-Lead SOIC 8-Lead PDIP and latch immune CMOS technologies enable ruggeIRS2003S IRS2003 dized monolithic construction.The logic input is compatible with standard CMOS or LSTTL output, down to 3.3 V logic.The output drivers feature a high pulse current buffer stage designed for minimum driver crossconduction.The floating cha

Features

Floating channel designed for bootstrap operation.
Fully operational to +200 V.
Tolerant to negative transient voltage, dV/dt.
Gate drive supply range from 10 V to 20 V.
Undervoltage lockout.
3.3 V, 5 V, and 15 V logic compatible.
Cross-conduction prevention logic.
Matched propagation delay for both channels.
Internal set deadtime.
High-side output in phase with HIN input.
Low-side output out of p.
