IRS2004PBF - HALF-BRIDGE DRIVER

International Rectifier

📥 Download Datasheet

IRS2004PBF Datasheet Preview — Preview of IRS2004PBF PDF

Datasheet Details

Part number	IRS2004PBF
Manufacturer	International Rectifier
File Size	305.81 KB
Description	HALF-BRIDGE DRIVER
Datasheet	IRS2004PBF_InternationalRectifier.pdf

IRS2004PBF Product details

Description

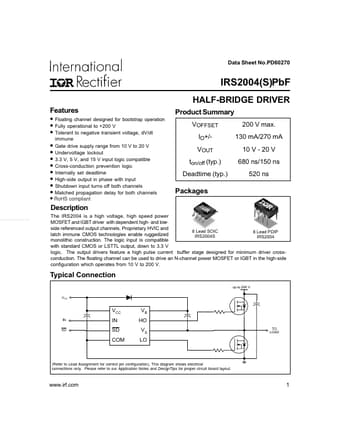

www.DataSheet4U.com The IRS2004 is a high voltage, high speed power MOSFET and IGBT driver with dependent high- and lowside referenced output channels.Proprietary HVIC and 8 Lead SOIC 8 Lead PDIP latch immune CMOS technologies enable ruggedized IRS2004S IRS2004 monolithic construction.The logic input is compatible with standard CMOS or LSTTL output, down to 3.3 V logic.The output drivers feature a high pulse current buffer stage designed for minimum driver crossconduction.The floating chann

Features

Floating channel designed for bootstrap operation.
Fully operational to +200 V.
Tolerant to negative transient voltage, dV/dt immune.
Gate drive supply range from 10 V to 20 V.
Undervoltage lockout.
3.3 V, 5 V, and 15 V input logic compatible.
Cross-conduction prevention logic.
Internally set deadtime.
High-side output in phase with input.
Shutdown input turns off both channels.
Matched propagatio.
