IRLU2905Z, IRLR2905Z POWER MOSFET

IRLU2905Z Description

PD - 95774B IRLR2905ZPbF IRLU2905ZPbF .
This HEXFET® Power MOSFET utilizes the latest processing techniques to achieve extremely low onresistance per silicon area.

IRLU2905Z Applications

* HEXFET® Power MOSFET D VDSS = 55V RDS(on) = 13.5mΩ ID = 42A S D-Pak I-Pak IRLR2905ZPbF IRLU2905ZPbF Absolute Maximum Ratings Parameter ID @ TC = 25°C Continuous Drain Current, VGS @ 10V (Silicon Limited) ID @ TC = 100°C Continuous Drain Current, VGS @ 10V ™ ID @ TC = 25°C Continuous Drain

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IRLU2905Z, IRLR2905Z. Please refer to the document for exact specifications by model.

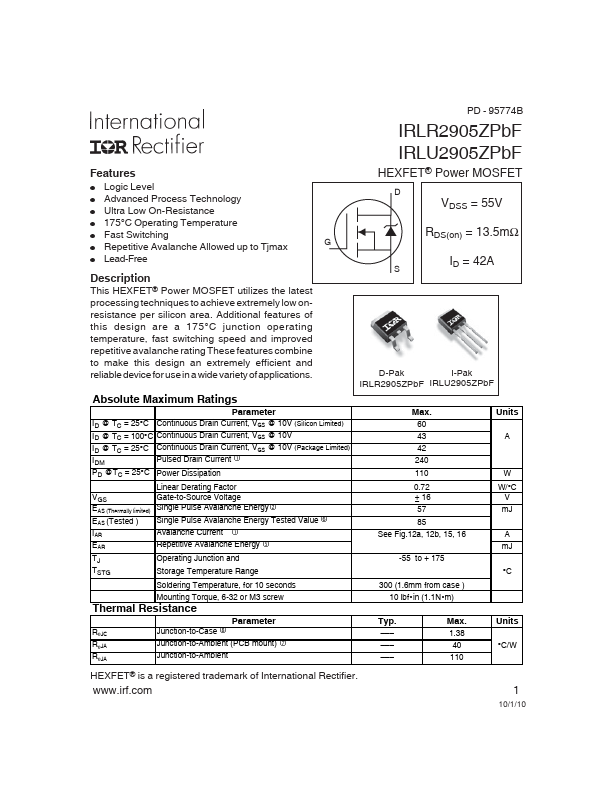

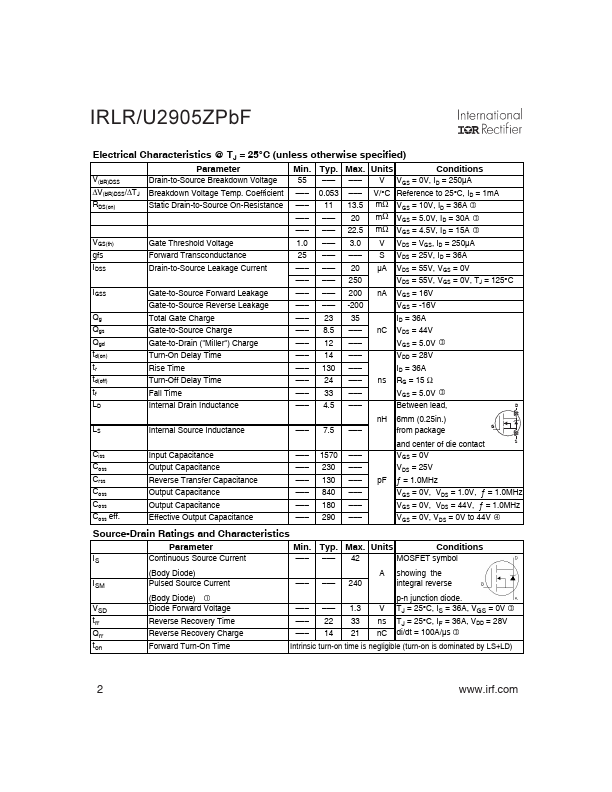

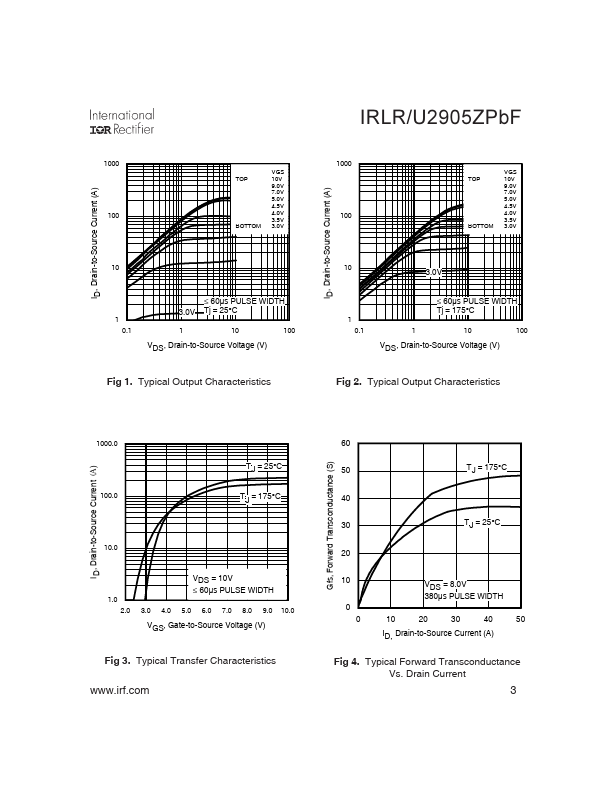

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IRLU2905Z, IRLR2905Z
Manufacturer
International Rectifier
File Size
337.25 KB
Datasheet
IRLR2905Z_InternationalRectifier.pdf
Description
POWER MOSFET
Note
This datasheet PDF includes multiple part numbers: IRLU2905Z, IRLR2905Z.
Please refer to the document for exact specifications by model.
