IRLU014N HEXFET Power MOSFET

IRLU014N Description

PD- 94350 IRLR/U014N HEXFET® Power MOSFET Logic-Level Gate Drive Surface Mount (IRLR024N) Straight Lead (IRLU024N) Advanced Process Technology Fast S.
Fifth Generation HEXFETs from International Rectifier utilize advanced processing techniques to achieve the lowest possible on-resistance per silicon.

IRLU014N Features

* 5) 0.64 (.025) 0.25 (.010) M A M B NOTES: 1 DIMENSIONING & TOLERANCING PER ANSI Y14.5M, 1982. 4.57 (.180) 2 CONTROLLING DIMENSION : INCH. 3 CONFORMS TO JEDEC OUTLINE TO-252AA. 4 DIMENSIONS SHOWN ARE BEFORE SOLDER DIP, SOLDER DIP MAX. +0.16 (.006). 0.58 (.023) 0.46 (.018) 2.28 (.090) Part Marking

IRLU014N Applications

* The D-PAK is designed for surface mounting using vapor phase, infrared, or wave soldering techniques. The straight lead version (IRFU series) is for through-hole mounting applications. Power dissipation levels up to 1.5 watts are possible in typical surface mount applications. D-Pak TO-252AA I-Pak

📥 Download Datasheet

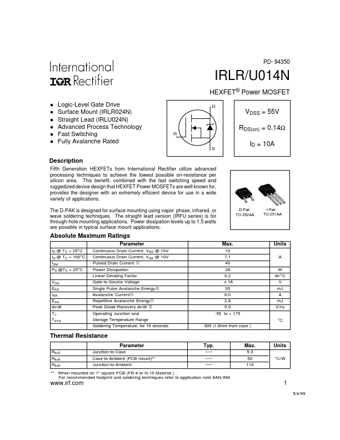

Preview of IRLU014N PDF
