IRLS3036PBF 60V Single N-Channel HEXFET Power MOSFET

IRLS3036PBF Description

PD -97358 IRLS3036PbF IRLSL3036PbF Applications www.datasheet4u.com l DC Motor Drive l High Efficiency Synchronous Rectification in SMPS l Uninterrup.

IRLS3036PBF Features

* v, assuming ∆ Tj = 150°C and Tstart =25°C (Single Pulse) 0.05 0.10 10 Allowed avalanche Current vs avalanche pulsewidth, tav, assuming ∆Τ j = 25°C and Tstart = 150°C. 1 1.0E-06 1.0E-05 1.0E-04 tav (sec) 1.0E-03 1.0E-02 1.0E-01 Fig 14. Typical Avalanche Current vs. Pulsewidth 300 250 200 150 100 50

IRLS3036PBF Applications

* www. datasheet4u. com l DC Motor Drive l High Efficiency Synchronous Rectification in SMPS l Uninterruptible Power Supply l High Speed Power Switching l Hard Switched and High Frequency Circuits Benefits l Optimized for Logic Level Drive l Very Low RDS(ON) at 4.5V VGS l Superior R
* Q at 4.5V VGS l

📥 Download Datasheet

Preview of IRLS3036PBF PDF

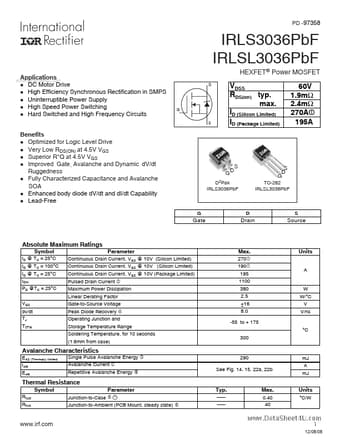

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IRLS3036PBF
Manufacturer
International Rectifier
File Size
392.27 KB
Datasheet
IRLS3036PBF_InternationalRectifier.pdf
Description
60V Single N-Channel HEXFET Power MOSFET
