IRLS-G5653 INTEGRATED SWITCHER

IRLS-G5653 Description

www.DataSheet4U.com IRIS-G5653 .
IRIS-G5653A is a hybrid IC consists from power MOSFET and a controller IC, designed for Indirect feed-back QuasiResonant (including low frequency PR.

IRLS-G5653 Features

* Oscillator is provided on the monolithic control with adopting On-ChipTrimming technology.
* Small temperature characteristics variation by adopting a comparator to compensate for temperature on the control part.
* Low start-up circuit current (100uA max)
* Built-in

IRLS-G5653 Applications

* This IC realizes high efficiency, low noise, downsizing and standardizing of a power supply system reducing external components count and simplifying the circuit designs. (Note). PRC is abbreviation of “Pulse Ratio Control” (On-width control with fixed OFF-time). Typical Connection Diagram IRIS-G

📥 Download Datasheet

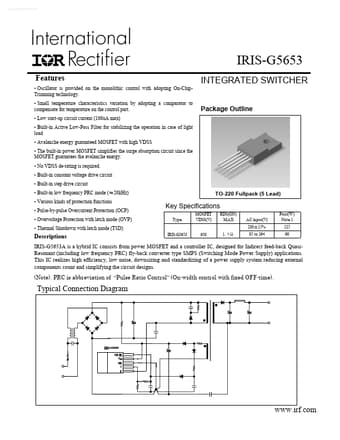

Preview of IRLS-G5653 PDF
