IRLHS6276, IRLHS6276PBF Power MOSFET

International Rectifier

Description

VDS VGS RDS(on) max (@VGS = 4.5V) RDS(on) max (@VGS = 2.5V) ID (@Tc(Bottom) = 25°C) 20 V ±12 V 45 mΩ 62 mΩ d 3.4 A ' * 6 ' .

📥 Download Datasheet

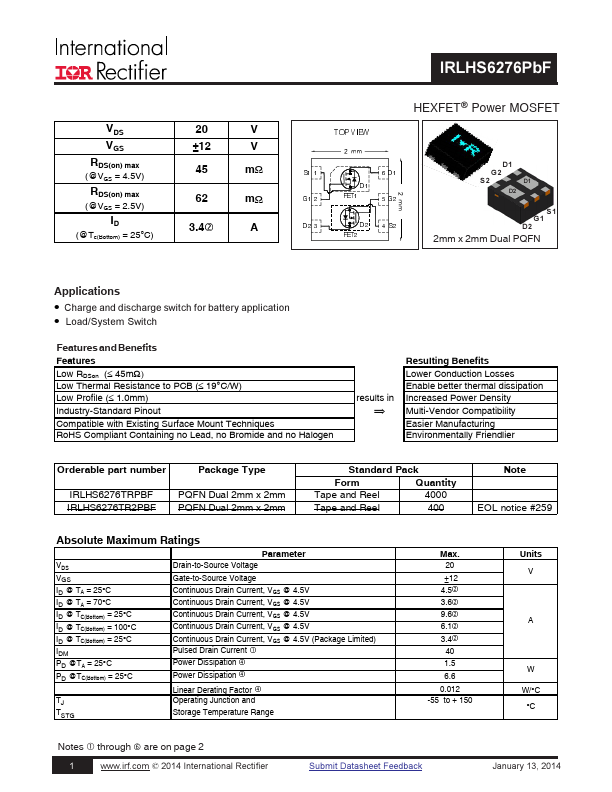

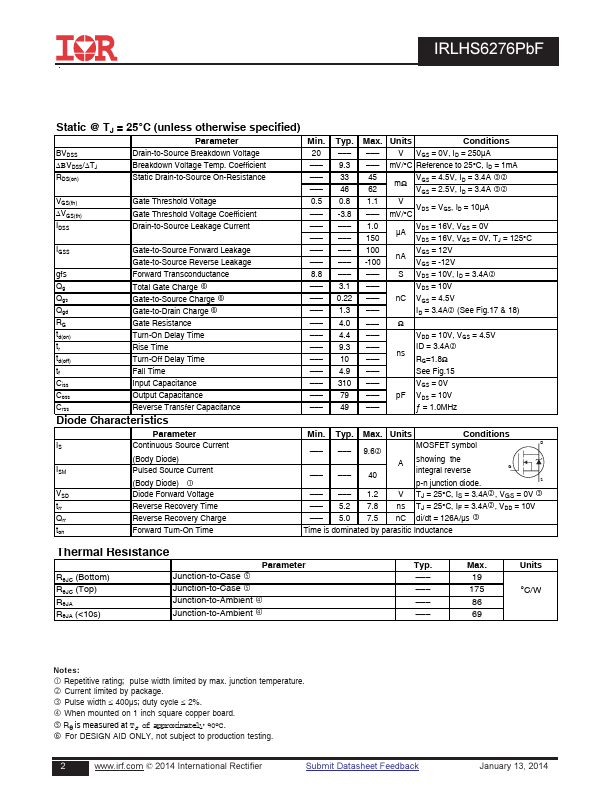

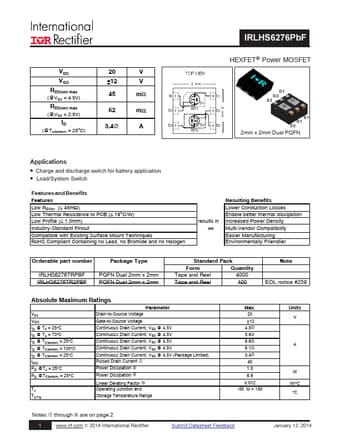

IRLHS6276 Datasheet Preview — This datasheet PDF includes multiple part numbers: IRLHS6276, IRLHS6276PBF. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: IRLHS6276, IRLHS6276PBF
Manufacturer: International Rectifier
File Size: 294.47 KB
Datasheet: IRLHS6276PBF_InternationalRectifier.pdf
Description: Power MOSFET
Note: This datasheet PDF includes multiple part numbers: IRLHS6276, IRLHS6276PBF.
Please refer to the document for exact specifications by model.

Features

* Features Low RDSon (≤ 45mΩ) Low Thermal Resistance to PCB (≤ 19°C/W) Low Profile (≤ 1.0mm) Industry-Standard Pinout Compatible with Existing Surface Mount Techniques RoHS Compliant Containing no Lead, no Bromide and no Halogen results in ⇒ Resulting Benefits Lower Conduction Losses Enable better t

Applications

* Charge and discharge switch for battery application
