IRHLUB7930Z4 - POWER MOSFET

Name: IRHLUB7930Z4
SKU: IRHLUB7930Z4-598509

International Rectifier

📥 Download Datasheet

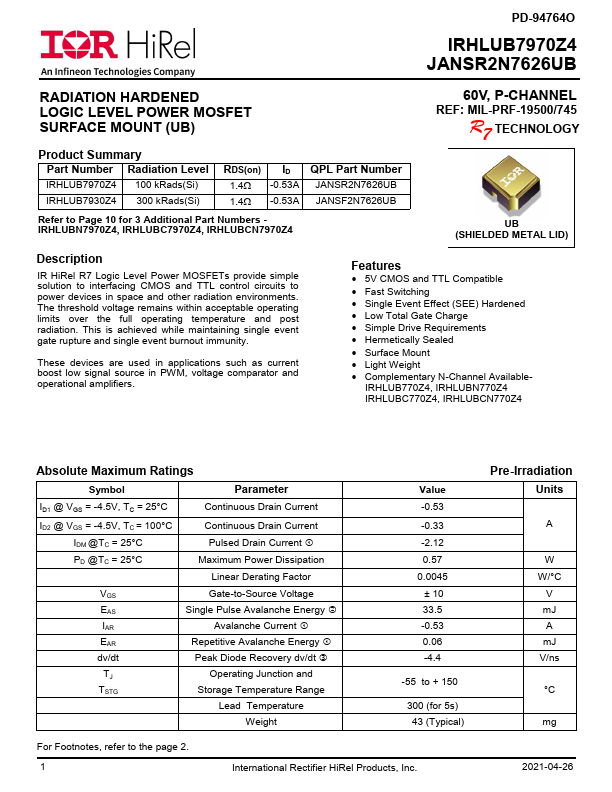

IRHLUB7930Z4 Datasheet Preview — Preview of IRHLUB7930Z4 PDF

Datasheet Details

Part number	IRHLUB7930Z4
Manufacturer	International Rectifier
File Size	810.07 KB
Description	POWER MOSFET
Datasheet	IRHLUB7930Z4_InternationalRectifier.pdf

IRHLUB7930Z4 Product details

Description

IR HiRel R7 Logic Level Power MOSFETs provide simple solution to interfacing CMOS and TTL control circuits to power devices in space and other radiation environments.

Features

5V CMOS and TTL Compatible.
Fast Switching.
Single Event Effect (SEE) Hardened.
Low Total Gate Charge.
Simple Drive Requirements.
Hermetically Sealed.
Surface Mount.
Light Weight.
Complementary N-Channel Available- IRHLUB770Z4, IRHLUBN770Z4 IRHLUBC770Z4, IRHLUBCN770Z4 Absolute Maximum Ratings Symbol Parameter ID1 @ VGS = -4.5V, TC = 25°C Continuous Drain Current ID2 @ VGS = -4.5V, TC = 100°C IDM @TC = 25°C Continuous Drain Current Pulsed Drain.
