IRFU12N25D SMPS MOSFET

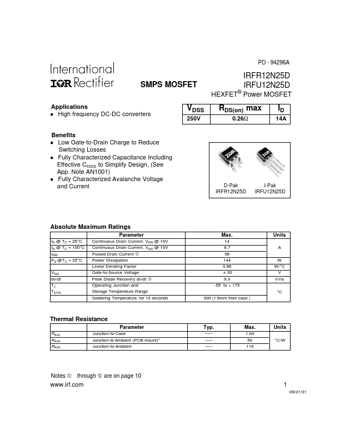

PD - 94296A SMPS MOSFET Applications High frequency DC-DC converters IRFR12N25D IRFU12N25D HEXFET® Power MOSFET l VDSS 250V RDS(on) max 0.26Ω ID 14A Benefits l Low Gate-to-Drain Charge to Reduce Switching Losses l Fully Characterized Capacitance Including Effective COSS to Simplify Design, (See App. Note AN1001) l Fully Characterized Avalanche Voltage and Current D-Pak IRFR12N25D I-Pak IRFU12N25D Absolute Maximum Ratings Parameter ID @ TC = 25°C ID @ TC = 100°C IDM PD @TC = 25°C VGS dv.

IRFU12N25D Features

* EMBLY LINE "A" PART NUMBER INT ERNAT IONAL RECT IFIER LOGO IRFU120 12 916A 34 ASSEMBLY LOT CODE DAT E CODE YEAR 9 = 1999 WEEK 16 LINE A 8 www.irf.com IRFR12N25D/IRFU12N25D I-Pak (TO-251AA) Package Outline Dimensions are shown in millimeters (inches) 6 .7 3 (.26 5 ) 6 .3 5 (.25 0 ) -A 5 .4 6 (.
