IRFF230 HEXFET TRANSISTORS

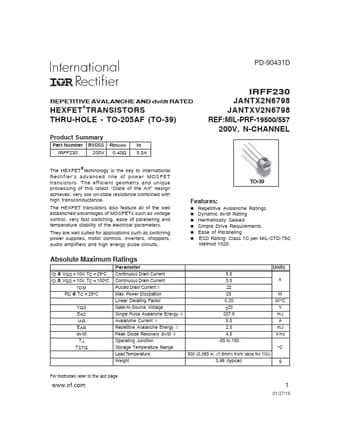

PD-90431D REPETITIVE AVALANCHE AND dv/dt RATED HEXFET®TRANSISTORS THRU-HOLE - TO-205AF (TO-39) Product Summary Part Number BVDSS IRFF230 200V RDS(on) 0.40Ω ID 5.5A IRFF230 JANTX2N6798 JANTXV2N6798 REF:MIL-PRF-19500/557 200V, N-CHANNEL The HEXFET®technology is the key to International Rectifier’s advanced line of power MOSFET transistors. The efficient geometry and unique processing of this latest “State of the Art” design achieves: very low on-state resistance combined with high transco.

IRFF230 Features

* n Repetitive Avalanche Ratings n Dynamic dv/dt Rating n Hermetically Sealed n Simple Drive Requirements n Ease of Paralleling n ESD Rating: Class 1C per MIL-STD-750, Method 1020 Absolute Maximum Ratings ID @ VGS = 10V, TC = 25°C ID @ VGS = 10V, TC = 100°C IDM PD @ TC = 25°C Parameter Continuous
