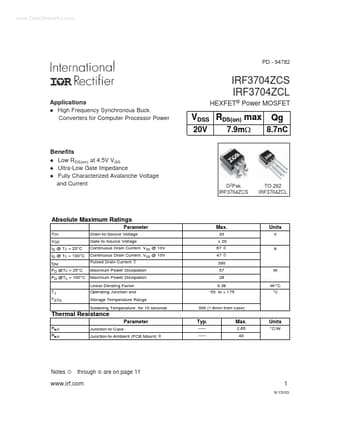

IRF3704ZCS, IRF3704ZCL - Power MOSFET

International Rectifier

Datasheet Details

Part number	IRF3704ZCS, IRF3704ZCL
Manufacturer	International Rectifier
File Size	296.41 KB
Description	Power MOSFET
Datasheet	IRF3704ZCL_InternationalRectifier.pdf
Note	This datasheet PDF includes multiple part numbers: IRF3704ZCS, IRF3704ZCL. Please refer to the document for exact specifications by model.

-source charge into two sub elements, Qgs1 and Qgs2, can be seen from Fig 16. Qgs2 indicates the charge that must be supplied by the gate driver between the time that the threshold voltage has been reached and the time the drain current rises to Idmax at which time the drain voltage begins to change. Minimizing Qgs2 is a critical factor in reducing switching losses in Q1. Qoss is the charge that must be supplied to the output capacitance of the MOSFET during every switching cycle. Figure A shows.
