IRF3704ZCL, Power MOSFET

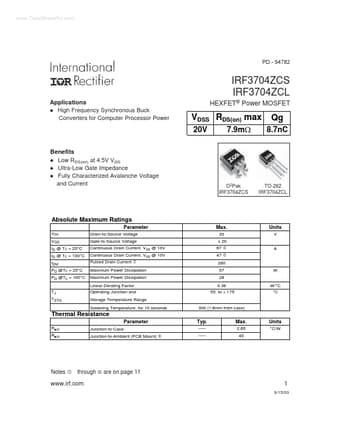

www.DataSheet4U.com PD - 94782 IRF3704ZCS IRF3704ZCL Applications l High Frequency Synchronous Buck Converters for Computer Processor Power HEXFET® Power MOSFET VDSS RDS(on) max 20V 7.9m: Qg 8.7nC Benefits l Low RDS(on) at 4.5V VGS l Ultra-Low Gate Impedance l Fully Characterized Avalanche Voltage and Current D2Pak IRF3704ZCS TO-262 IRF3704ZCL Absolute Maximum Ratings Parameter VDS VGS ID @ TC = 25°C ID @ TC = 100°C IDM PD @TC = 25°C PD @TC = 100°C TJ TSTG Drain-to-Source Voltage Gate-t

IRF3704ZCL Features

* -source charge into two sub elements, Qgs1 and Qgs2, can be seen from Fig 16. Qgs2 indicates the charge that must be supplied by the gate driver between the time that the threshold voltage has been reached and the time the drain current rises to Idmax at which time the drain voltage begins to change
