IRAMS06UP60B - Plug N Drive Integrated Power Module

International Rectifier

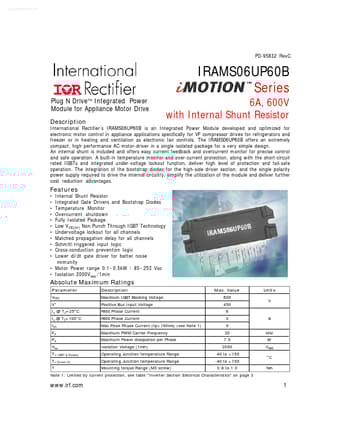

IRAMS06UP60B Datasheet Preview — Preview of IRAMS06UP60B PDF

Datasheet Details

Part number	IRAMS06UP60B
Manufacturer	International Rectifier ↗
File Size	390.88 KB
Description	Plug N Drive Integrated Power Module
Datasheet	IRAMS06UP60B_InternationalRectifier.pdf

IRAMS06UP60B Product details

Description

6A, 600V with Internal Shunt Resistor International Rectifier’s IRAMS06UP60B is an Integrated Power Module developed and optimized for electronic motor control in appliance applications specifically for VF compressor drives for refrigerators and freezer or in heating and ventilation as electronic fan controls.The IRAMS06UP60B offers an extremely compact, high performance AC motor-driver in a single isolated package for a very simple design.An internal shunt is included and offers easy curren

Features

Internal Shunt Resistor Integrated Gate Drivers and Bootstrap Diodes Temperature Monitor Overcurrent shutdown Fully Isolated Package. Low V CE(on) Non Punch Through IGBT Technology Undervoltage lockout for all channels Matched propagation delay for all channels Schmitt-triggered input logic Cross-conduction prevention logic Lower di/dt gate driver for better noise immunity.
Moto.
