IRAM136-3023B - Integrated Power Hybrid IC

International Rectifier

📥 Download Datasheet

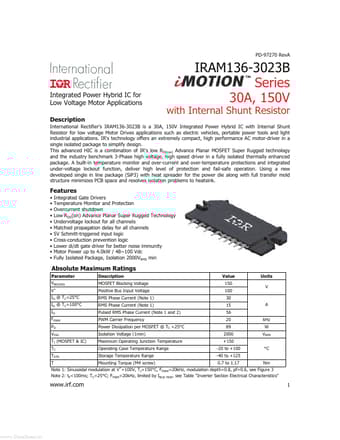

IRAM136-3023B Datasheet Preview — Preview of IRAM136-3023B PDF

Datasheet Details

Part number	IRAM136-3023B
Manufacturer	International Rectifier
File Size	245.25 KB
Description	Integrated Power Hybrid IC
Datasheet	IRAM136-3023B_InternationalRectifier.pdf

IRAM136-3023B Product details

Description

IRAM136-3023B Series 30A, 150V with Internal Shunt Resistor International Rectifier's IRAM136-3023B is a 30A, 150V Integrated Power Hybrid IC with Internal Shunt Resistor for low voltage Motor Drives applications such as electric vehicles, portable power tools and light industrial applications.IR's technology offers an extremely compact, high performance AC motor-driver in a single isolated package to simplify design.This advanced HIC is a combination of IR's low RDS(on) Advance Planar MOSFE

Features

Integrated Gate Drivers Temperature Monitor and Protection Overcurrent shutdown Low RDS(on) Advance Planar Super Rugged Technology Undervoltage lockout for all channels Matched propagation delay for all channels 5V Schmitt-triggered input logic Cross-conduction prevention logic Lower di/dt gate driver for better noise immunity Motor Power up to 4.0kW / 48~100 Vdc Fully Isolated Package,.
