IR25604SPBF - High and Low Side Driver

International Rectifier

📥 Download Datasheet

IR25604SPBF Datasheet Preview — Preview of IR25604SPBF PDF

Datasheet Details

Part number	IR25604SPBF
Manufacturer	International Rectifier
File Size	1.92 MB
Description	High and Low Side Driver
Datasheet	IR25604SPBF_InternationalRectifier.pdf

IR25604SPBF Product details

Description

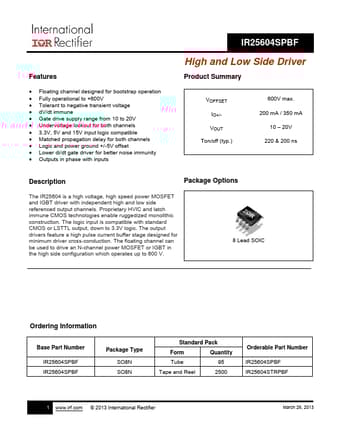

Package Options The IR25604 is a high voltage, high speed power MOSFET and IGBT driver with independent high and low side referenced output channels.Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction.The logic input is compatible with standard CMOS or LSTTL output, down to 3.3V logic.The output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction.The floating channel can be used to drive an N-channel power

Features

Floating channel designed for bootstrap operation.
Fully operational to +600V.
Tolerant to negative transient voltage.
dV/dt immune.
Gate drive supply range from 10 to 20V.
Undervoltage lockout for both channels.
3.3V, 5V and 15V input logic compatible.
Matched propagation delay for both channels.
Logic and power ground +/-5V offset.
Lower di/dt gate driver for better noise immunity.
Outputs in phase with inputs IR25604SPBF High and Low Si.
