IR25600SPBF - Dual Low Side Driver

International Rectifier

📥 Download Datasheet

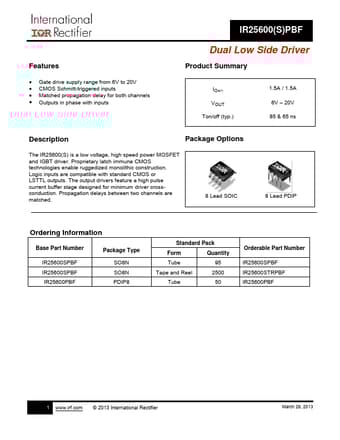

IR25600SPBF Datasheet Preview — Preview of IR25600SPBF PDF

Datasheet Details

Part number	IR25600SPBF
Manufacturer	International Rectifier
File Size	1.33 MB
Description	Dual Low Side Driver
Datasheet	IR25600SPBF_InternationalRectifier.pdf

IR25600SPBF Product details

Description

Package Options The IR25600(S) is a low voltage, high speed power MOSFET and IGBT driver.Proprietary latch immune CMOS technologies enable ruggedized monolithic construction.Logic inputs are compatible with standard CMOS or LSTTL outputs.The output drivers feature a high pulse current buffer stage designed for minimum driver crossconduction.Propagation delays between two channels are matched.8 Lead SOIC 8 Lead PDIP Ordering Information Base Part Number IR25600SPBF IR25600SPBF IR25600P

Features

Gate drive supply range from 6V to 20V.
CMOS Schmitt-triggered inputs.
Matched propagation delay for both channels.
Outputs in phase with inputs IR25600(S)PBF Dual Low Side Driver Product Summary IO+/VOUT Ton/off (typ. ) 1.5A / 1.5A 6V.
20V 85 & 65 ns.
